|Place of Origin:||China|
|Minimum Order Quantity:||1Pcs，Sample Available|
|Packaging Details:||PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized|
|Delivery Time:||7 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100000pcs per month|
|Port Size:||1 1/2"||Application:||Dedusting|
|Valve Type:||Dust Collector Valve||Color:||Black|
Mecair Pulse Valve Diaphragm,
Mecair Diaphragm Repair Kit

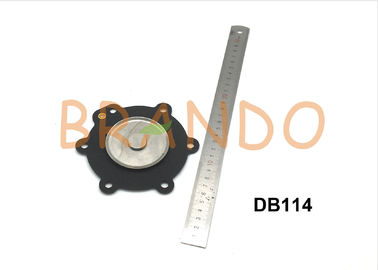

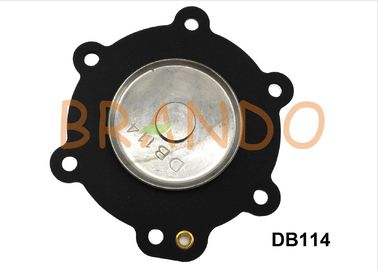

Industrial Dust Collector System MECAIR Type Pulse Valve Diaphragm DB114 With Good Sealing
One of the most important role of Diaphragm in Pulse Valve is that it has great sealing.Moreover,the Diaphragm quality determines the quality of pulse valve and even affects the performance and life of dust removal equipment.In a word,it's necessary that you should select the superior Pulse Valve Diaphragm.
Right-angle electromagnetic pulse valve: valve body inlet and outlet into a right Angle, directly controlled by the electrical signal diaphragm valve; Direct electromagnetic pulse valve: valve body inlet and outlet into 180 degrees, directly controlled by the electrical signal diaphragm valve; Submerged electromagnetic pulse valve: valve body inlet submerged in the air bag, directly controlled by the electrical signal diaphragm valve
|Type||MECAIR Pulse Valve Diaphragm|
|Applicable Machine||Dust Collector Machine|
|Packaging||According Your Request|
|Usage Life||1000000 Million Cycles|
The Detailed Data of Diaphragm for Your Perusal

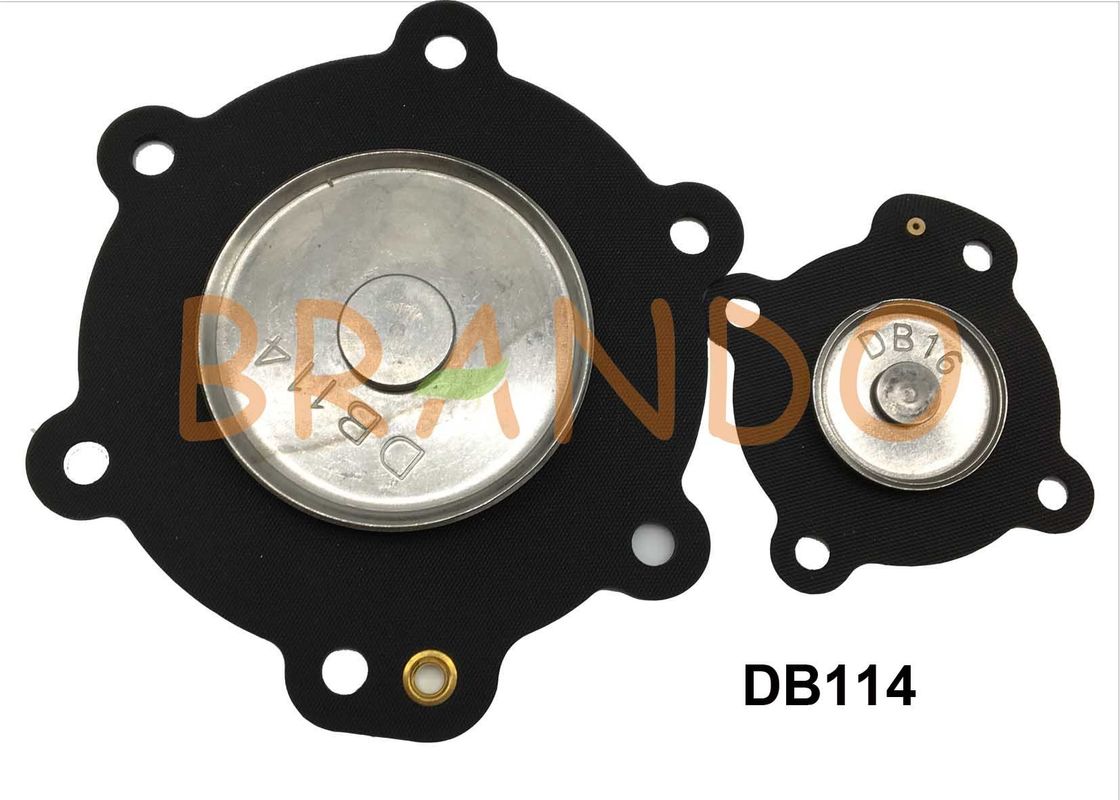

You can see The Structural Components in the Picture
Structure performance of Pulse Valve Diaphragm
Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.
The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.
The technical requirements of Pulse Valve Diaphragm
Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.
If you are interesting,pls feel free to contact us
