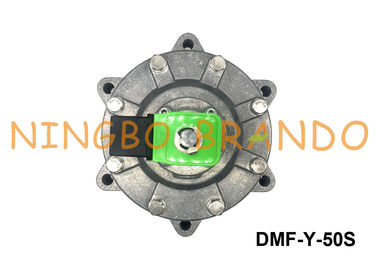

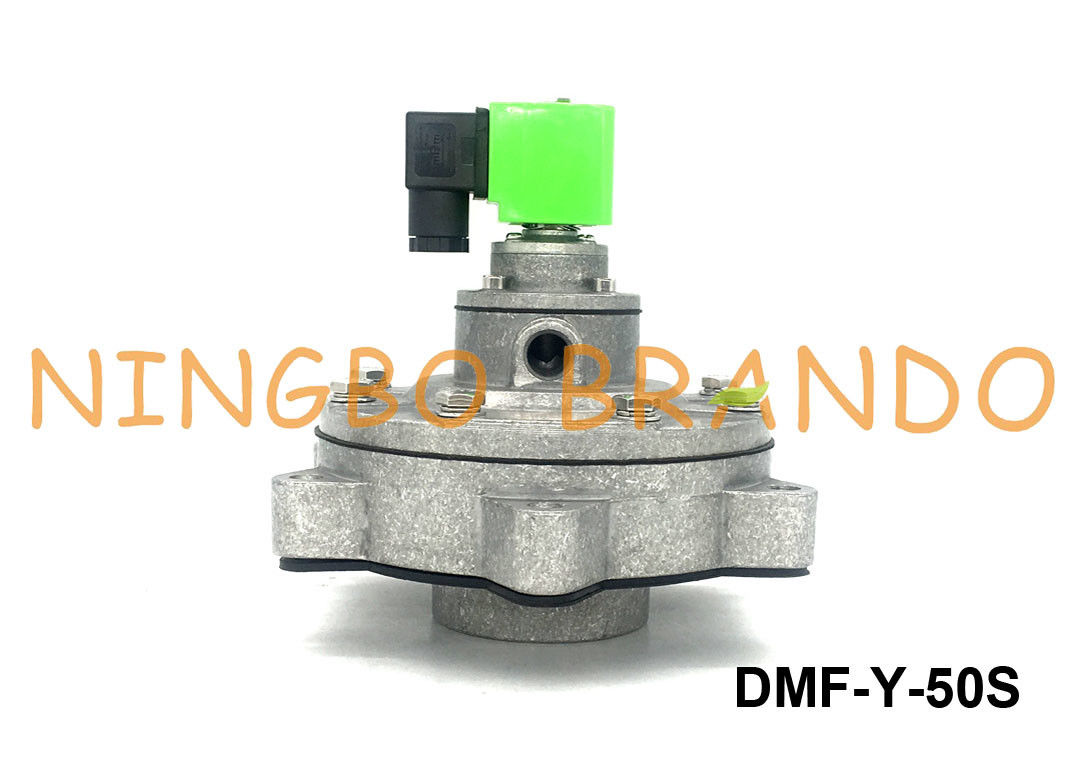

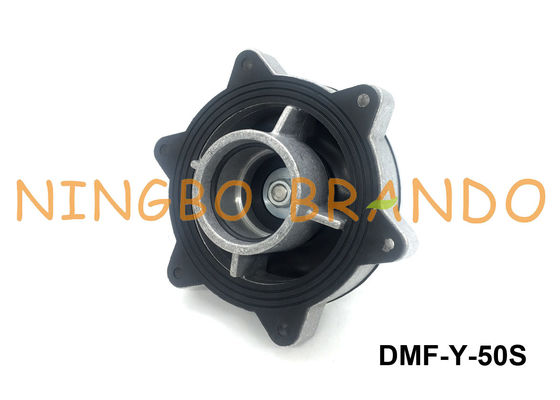

24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm

24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm

  • 24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm
  • 24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm
  • 24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm
24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: DMF-Y-50S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Inner Boxes,Carton,Pallet
Delivery Time: 4-10 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 100000 pieces per month
Contact Now
Detailed Product Description
Name: DMF-Y-50S SBFEC Type Pulse Valve Valve Type: Full Immersion
Installation: Manifold Flat Mounted Pipe Size: 2''
Nominal Size: φ50mm Working Media: Compressed Air
Suitable Pressure: 1 To 8 Bar Diaphragm Material: NBR (Nitrile)
Body Material: Aluminum Die-casting Suitable Voltages: DC24V, AC220V, AC110V, AC24V
High Light:

SBFEC Pulse Valve

,

SBFEC Solenoid Valve

,

SBFEC Diaphragm Valve

24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm



The full immersion manifold flat mount valves of the DMF-Y series deliver the most powerful air pulse in square tank systems. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.

1. Ready for use in any dust collector design
*For noxious substance control and environmental dust management

2. Superior cartridge cleaning results
*Most powerful air pulse due to full immersion design

3. Cost savings
*Increased pulse efficiency, reduced energy consumption *Durable materials and wide temperature range enhance lifespan
*Longer filter life, lower dust collector OPEX

4. Compliance
*With environmental and health & safety regulations

5. Ease of installation
*No welding required



YouTube video of DMF-Y-50S SBFEC Type Manifold Mount Pulse Valve:



Technical parameters of SBFEC Type Full Immersion Diaphragm Valves

Model DMF-Y-25 DMF-Y-40S DMF-Y-50S DMF-Y-62S DMF-Y-76S DMF-Y-102S

Diaphragm size

(φ66 smaller)

φ96

φ112

φ160

φ188

φ202

φ255

KV/CV value 26.16/30.53 45.82/53.47 61.24/71.47 129.26/150.85 159.95/186.66 268.29/313.09
Blowing area (㎡) 8-10 12-16 18-28 27-38 37-65 70-90
Port size G1'' G1 1/2'' G2'' G2 1/2'' G3'' G4''
Weighgts (kg) 0.75 1.2 2.35 3.2 4.05 5.65
Working pressure 0.2MPa-0.6MPa
Environment temperature -25℃-60℃
Relative humidity ≤85%
Working medium Compressed air
Protection class IP 65
Service life Over 1000000 times
Voltages DC24V, AC110V, AC220V

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.



Main dimension of DMF-Y-50S 2 Inch SBFEC Type Solenoid Pulse Valve:

24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm 0



Details of SBFEC Type DMF-Y-50S Dust Collector Pulse Jet Valve:

24V DC DMF-Y-50S 2'' SBFEC Type Manifold Mount Pulse Valve Full Immersion Nitrile Diaphragm 1



100% Testing of Brando's Pulse Jet Valves:


1. Voltage test when turned on
In the air inlet of the electromagnetic pulse valve, connect the clean air with the nominal pressure of the air source. Input the electric signal of 85% of the nominal voltage and 0.03s of the width on the electromagnetic valve to check whether the electromagnetic pulse valve is open normally.



2. Air pressure test when closed
In the air inlet of the electromagnetic pulse valve, connect the clean air with a pressure of 0.1 MPa, input the electrical signal to close the valve, and check whether the electromagnetic pulse valve is reliably closed.



3. Pressure resistance test
In the air inlet of the electromagnetic pulse valve, the clean air with a pressure of 0.8 MPa is connected for 60 minutes, and the leakage of the sealing parts on the electromagnetic pulse valve is checked.



4. Insulation resistance test
(1) Measure the insulation resistance of the electromagnetic coil to the outer casing under the specified environmental conditions using a 500V meter with a range of 0MΩ to 500MΩ and an accuracy of 1 meter.


(2) Put the valve in the temperature regulation and humidity control box, and set the temperature to 35 degrees, and the relative humidity is 85%, apply a 50Hz, 250V sinusoidal AC voltage between the electromagnetic coil and the valve body for 1min. Check for breakdown.
