0-8 Bars 5 / 2 Double Electric Solenoid Valve 4V230C-06 For Pneumatic

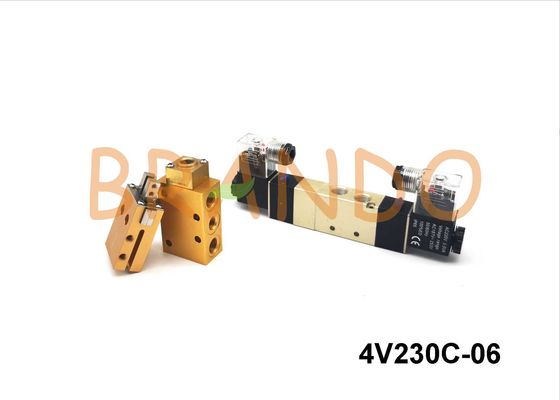

4V230C-06 5/2 Double Electro Solenoid Valve For Pneumatic DC 12 24 Volt AC 220 Volt

4V230C-06 pneumatic cylinder valve is an industrial device that is controlled by electromagnetic force. It is an automatic basic component for controlling fluid. It is an actuator, and a pneumatic solenoid valve is one of them. It controls the movement of the piston to block or leak different holes. The hole is normally open, the gas will enter different outlet pipes, and then the piston of the cylinder will be pushed by the pressure of the pneumatic electromagnetic valve, so that the mechanical movement of the entire solenoid valve is controlled by the current of the electromagnet controlling the pneumatic solenoid valve.

The combination of 4V pneumatic solenoid valve technology and control technology, computer technology, and electronic technology has enabled a variety of complex controls. For example, the 4V pneumatic solenoid valve can be applied in the field of intelligent control and applied in wireless control technology. Because the 4V pneumatic solenoid valve can be controlled by electromagnetic, it can interface well with various electronic systems, which is one of the main reasons for its wide application.

Technical information chart 4V230C-06 High Speed Double Coils Solenoid Valve For Pneumatic:

Piston and seals of 4V230C-06 pneumatic solenoid valve 5/2 24V:

Laser engraving information of 4V series pneuamtic solenoid valve in pneumatic:

Actual use display of 4V solenoid valve for pneumatic cylinder:

Principle of 4V pneumatic control electromagnetic valve on automatic control equipment:
For small automatic control equipment, the gas pipe is generally 8~12mm industrial rubber pipe. Electrically speaking, the two-position three-way solenoid valve is generally a single electronic control (ie, a single coil), and the two-position five-way solenoid valve is generally a dual electronic control (ie, a double coil). The coil voltage level is generally DC24V, AC220V, etc.

The two-way three-way solenoid valve is divided into two types: normally closed type and normally open type. The normally closed type means that the gas path is broken when the coil is not energized, and the normally open type means that the gas path is open when the coil is not energized. Normally closed two-way three-way solenoid valve operating principle: the coil is energized, the gas path is connected, and once the coil is de-energized, the gas path will be disconnected. Normally open two-position three-way single electronically controlled solenoid valve action principle: the coil is energized, the gas path is disconnected, and once the coil is de-energized, the gas path will be connected.

The operation principle of the two-way five-way double electronically controlled solenoid valve: when the positive action coil is energized, the positive action air path is turned on (the positive action air outlet has gas), even if the positive action coil is powered off, the positive action air path is still connected. It will be maintained until the counter-action coil is energized. When the reverse action coil is energized, the reverse action air path is turned on (the reverse action air hole has gas), and even if the reverse action coil is turned off, the reverse action air path is still turned on, and will continue until the positive action coil is energized. . Based on the characteristics of the two-way five-way dual electronically controlled solenoid valve, when designing the electromechanical control loop or programming the PLC program, the solenoid valve coil can be operated for 1~2 seconds, which can protect the solenoid valve coil from being easily damaged.
