1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate

1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate

  • 1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate
  • 1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate
  • 1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate
  • 1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate
1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: ISO
Model Number: DMF-Z-40S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Box,Carton
Delivery Time: 5 Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 9999 pcs per month
Contact Now
Detailed Product Description
Material: Aluminium Alloy Port Size: 1 1/2 Inch
Weight: 1.2kg Application: Dust Collector
High Light:

pulse jet valves

,

solenoid pulse valve

1.2kg Air Cleaning Solenoid Valve/1 1/2 inch Aluminum Alloy DMF-Z-40S



Right-angle electromagnetic pulse valve is usually used in the environmental dust removal industry. It adopts DC24V, AC220V voltage, and has two colors of dark green and light green. You can choose different colors according to your needs.



Specification

Model NO:DMF-Z-40S

Working-pressure:0.20--0.85MPa

Ambient Temperature:-5 ~55

Relative Humidity:< 85 %

Working Medium:Clean Air

Voltage:AC220V DC24V

Diaphragm Life:Over One Million cycles

Orifice:Ø 40

Connection Port: G 1 1/2"


Dimension Drawing of DMF-Z-40S

1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate 0



Model   Interface diameter
Working
Voltage

Working
Pressure
Caliber
INCH Connecting thread INCH Metric system
DMF-Z-20 3/4 G3/4 20

DC24V AC220V



0.2-0.6Mpa
DMF-Z-25 1 G1 25
DMF-Z-40 1-1/2 G11/2 40
DMF-Z-40S 1-1/2 G11/2 40
DMF-Z-50S 2 G2 50
DMF-Z-62S 2-1/2 G21/2 62
DMF-Z-76S 3 G3 76

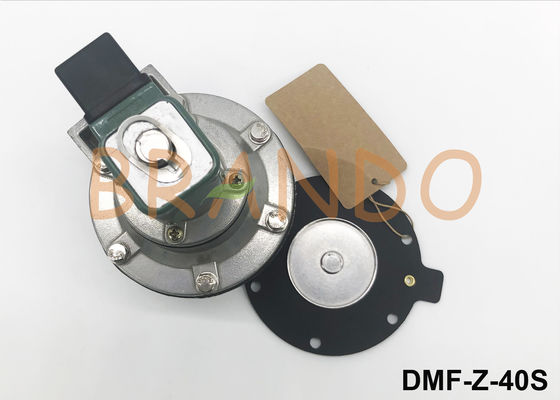

Details of DMF-Z-40S

1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate 1

1.2kg Right Angle Air Solenoid Valve DMF-Z-40S With ISO Certificate 2



According to the angle of the valve inlet and outlet and the form of the air inlet, it can be divided into three types:

a) Right-angle electromagnetic pulse valve: a diaphragm valve whose inlet and outlet are at right angles and directly controlled by electrical signals;



b) Straight-through electromagnetic pulse valve: a diaphragm valve whose inlet and outlet are 180 degrees and directly controlled by electric signals;



c) Submerged electromagnetic pulse valve: The diaphragm valve whose valve body inlet is submerged in the air bag and directly controlled by the electric signal.



In addition to the conventional three kinds of solenoid valves, there is also a large-caliber ultra-low pressure electromagnetic pulse valve for rotary injection.



Of Course ,We can provide all types to you,if you necessary other types solenoid valve,please contact us.





Installation instructions



1. Special Note: The pipe must be cleaned and purged before installation to prevent impurities from clogging the valve port and destroying the sealing surface. If there are tiny impurities and dust, install a filter in front of the valve (filter ≥ 80 mesh cm2).



2. When installing, note that the arrow on the valve body should be consistent with the flow direction of the pipe, and the coil should be installed horizontally vertically.



3. Check whether the pressure, temperature and voltage are consistent with the actual parameters of the solenoid valve nameplate before installation.



4. Pay attention to the cleaning of the media. During the use, the components inside the valve body should be cleaned regularly. After disassembly, the gasket should be inspected at the same time. If the damage is found, it should be replaced in time.



please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.



Welcome your inquiry!
