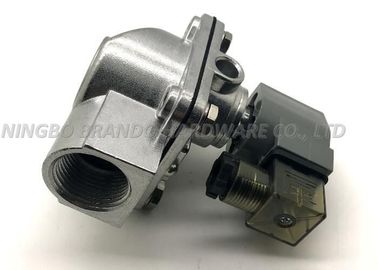

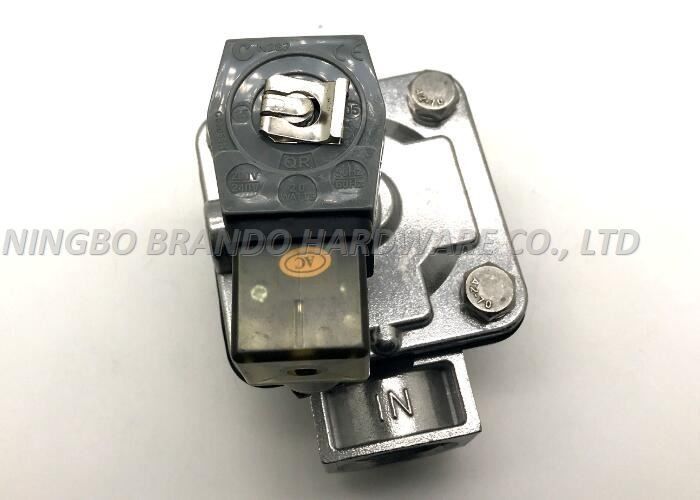

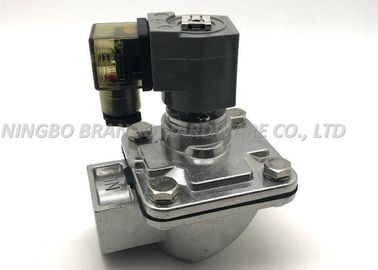

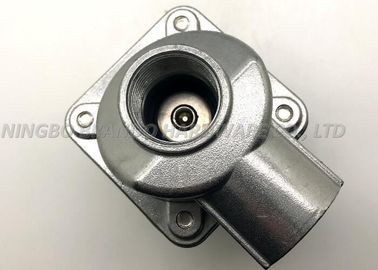

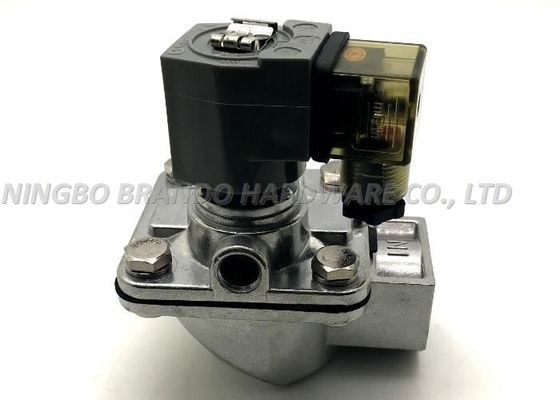

220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System

220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System

  • 220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
  • 220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
  • 220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
  • 220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
  • 220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System
Product Details:
Place of Origin: China
Brand Name: BRANDO
Certification: CE
Model Number: CA25T
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Box and carton
Delivery Time: 1 working day
Payment Terms: T/T, Western Union
Supply Ability: 300 pcs per day
Contact Now
Detailed Product Description
Part No.: CA25T Description: Integral Pilot Pulse Valve
Voltage: 200/240 VAC, 100/120 VAC, 24 VAC, 24VDC, 12VDC Power: 20 Watt
Coil Connection: QR - DIN Connection Body Material: Aluminium Die-casting
High Light:

Goyen Dust Collector Valve

,

Goyen Pulse Jet Valve

,

Goyen Solenoid Valve

Goyen Type T Series CA25T 220/240V AC Voltage Dust Collector Baghouse Cleaning System Application Pneumatic Pulse Valve



CA25T Pulse Valve Diaphragm/Solenoid Activation

Dust Collector Pulse-Jet Valve Operating Sequence:

1. Differential pressure (DP) builds across the filter bags/cartridges as dust load increases in the collector.

2. Once DP reaches a pre-set point, the pulse-jet cleaning system is activated to go through a cleaning sequence/cycle, as programmed in the timer board or other controller.

3. The timer board (or other controller) then sends an electrical signal to the pilot solenoid valve(s), causing the coil to energize, thus pulling the valve plunger into the open position allowing the compressed air in the pneumatic line to bleed to atmosphere. (NOTE: The pilot solenoid valve can be direct-mounted (mounted directly on top of the diaphragm valve, or it can be remote-mounted (mounted in a solenoid enclosure separate from the diaphragm and connected with pneumatic tubing, as shown above.)

4. Bleeding the compressed air line to atmosphere causes an imbalance in air pressure within the diaphragm valve. In other words, the air pressure suddenly drops on the top-side of the diaphragm valve as the pneumatic line is bled to atmosphere.

5. The change in pressure difference within the diaphragm valve causes the compressed air manifold (compressed air tank) to force the diaphragm up from its seat, thus allowing compressed air to bypass the diaphragm and be expelled into the blow-tube. The “pulse” of compressed air then blows the dust off of the filter bags/cartridges.

6. The coil is quickly de-energized which causes the plunger to return to the closed position. Compressed air then bleeds through the diaphragm valve until the point where pressure is equalized on both sides of the diaphragm. Equalization of air pressure inside the diaphragm causes the diaphragm to reseat (return to closed position). The pulse cycle is then completed.



Pulse Cleaning System Components

220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System 0



Diaphragm Valve CA25T Operation:

220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System 1



Mechanical Details of Goyen Type Pulse Valve CA25T:

No. Description Standard material
1 Body and Cover Aluminium die cast CA313
2 Bleed pin Turned aluminium
3 Diaphragm ass'y Buna N / Buna N Rubber
4 Springs 304 stainless steel
5 Screws 304 stainless steel
6 O rings Buna N / Nitrile
7 Plunger Ass'y 430 FR stainless steel
8 Ferrule / Iron top ass'y 305 stainless steel
9 Coil arrgmnt 130 rated nylon encapsulation
10 washer pressed aluminium
11 clip mechanical plated steel



Pulse Valve CA25T Dimensions:

220 / 240v Ac Pulse Jet Valves For Dust Collector Baghouse Cleaning System 2



Pulse Valve C25T Installation:
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
