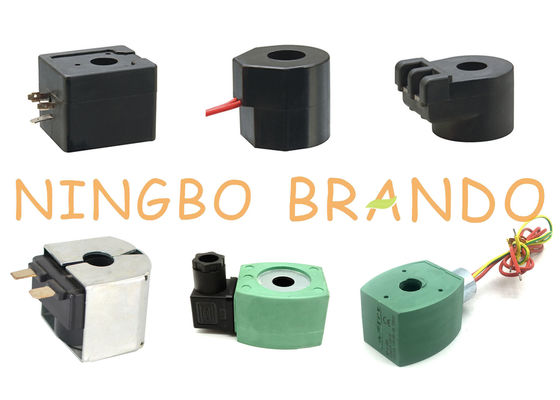

ASCO Type Solenoid Coil

ASCO Type Solenoid Coil

  • ASCO Type Solenoid Coil
ASCO Type Solenoid Coil
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: ASCO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 set per month
Contact Now
Detailed Product Description
Product Name: ASCO Solenoid Coil Replacement Connection Type: DIN 43650A, Flying Leads, 2 PINS, Screw
Insulation Class: F, H Temperature Class: T, B, F
Protection Class: IP65, IP67 Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:

ASCO Solenoid Coil

,

ASCO Solenoid Valve Coil

,

ASCO Coils

ASCO Type Solenoid Coil



Solenoid Coil Product Features:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Dimension & Code No of 400325 & 400425 Solenoid Coil:

ASCO Type Solenoid Coil 0             ASCO Type Solenoid Coil 1

                       400325                                                                 400425

Voltgaes
24V DC
48V DC
24V AC
48V AC
115V AC
230V AC
FT
400325-142
400325-144
400325-101
400325-105
400325-118
400325-117
FB
400325-242
400325-244
400325-201
400325-205
400325-218
400325-217
FT
400425-142
400425-144
400425-101
400425-105
400425-118
400425-117
FB
-
-
400425-201
400425-205
400425-218
400425-217
FF
400425-342
400425-344
-
-
-
-



Dimension & Code No of MP-C-147 Solenoid Coil:

ASCO Type Solenoid Coil 2               ASCO Type Solenoid Coil 3

                                 M6                                                                           MXX

Size and Class
24V DC
48V DC
24V AC
48V AC
115V AC
230V AC
M6-HT
238513-006
238513-017
-
-
-
-
M6-FT
-
-
238213-006
238513-016
238513-033
238513-0059
M6-HB
238513-106
238513-117
-
-
-
-
M6-FB
-
-
238213-106
238213-116
238213-133
238213-157
MXX-HT
238913-006
238913-017
-
-
-
-
MXX-FT
238713-006
238713-017
238613-006
238613-016
238613-033
238613-059
MXX-HB
238913-106
238913-117
-
-
-
-
MXX-FB
-
-
238613-106
238613-116
238613-133
238613-159



Other ASCO replacement Solenoid Coils for you to choose:

ASCO Type Solenoid Coil 4ASCO Type Solenoid Coil 5ASCO Type Solenoid Coil 6



More ASCO Type Pulse Valve For You to Choose:

ASCO Type Solenoid Coil 7ASCO Type Solenoid Coil 8ASCO Type Solenoid Coil 9

          Right Angle Type                         Remote Pilot Type                           Immersion Type

ASCO Type Solenoid Coil 10ASCO Type Solenoid Coil 11ASCO Type Solenoid Coil 12

                 Diaphragm                            Armature Assembly                       Pulse Controller
