| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | Refrigeration |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 set per month |
| Product Name: | Clip-on Solenoid Coil | Voltages: | 24V, 48V, 110V, 115V, 120V, 220V, 230V, 240V |
|---|---|---|---|
| Connection Type: | Ternimal Box, Flying Leads, DIN Connector | Solenoid Coil Type: | BE, BF, BG, BB, BN |
| Protection Class: | IP20, IP67 | Fitted Valves: | EVR Solenoid Valve |
| High Light: | danfoss solenoid coil,Danfoss Solenoid Valve Coil,Danfoss Coil For Solenoid Valve |
||
Danfoss Type Solenoid Coil
The danfoss type solenoid coils are specially designed to operate in the aggressive environment of high humidity and temperature fluctuations that you find in most refrigeration systems.
The Clip-on fastening system ensures a faultless installation and makes the solenoid coils easy to mount and dismount. A Clip-on solenoid coil can be mounted without any tools at all, and it is simple to dismount the coil by means of a screwdriver.
The Clip-on solenoid coils are available for the entire range of Danfoss solenoid valves for refrigeration, freezing and air conditioning purposes.
Features:
1. Encapsulated coils with long operating life, even under extreme conditions.
2. Standard coils for AC or DC.
3. Standard coils available with 3-core cable, terminal box or DIN plugs.
4. Standard coils from 12 V to 420 V, 50, 60 or 50/60 Hz.
5. Coils can be fitted without the use of tools.
Dimension & Code No of BE & BF Solenoid Coils:
|
Coil type
|
Supply voltage
|
Power
|
Frequency (Hz)
|
Ambient temperature
|
Code no.
|
|
|
BE-coils with terminal box
|
BF-coils with cable
|
|||||
|
BE024AS
|
24V AC
|
10W
21VA
|
50
|
80
|
018F6707
|
018F6257
|
|
BE048AS
|
48V AC
|
018F6709
|
018F6259
|
|||
|
BE115AS
|
115V AC
|
018F6711
|
018F6261
|
|||
|
BE230AS
|
220-230V AC
|
018F6701
|
018F6261
|
|||
|
BE240AS
|
240V AC
|
018F6702
|
018F6252
|
|||
|
BE380AS
|
380-400V AC
|
018F6703
|
018F6253
|
|||
|
BE024BS
|
24V AC
|
60
|
018F6715
|
018F6265
|
||
|
BE115BS
|
115V AC
|
018F6710
|
018F6260
|
|||
|
BE220BS
|
220V AC
|
018F6714
|
018F6264
|
|||
|
BE110CS
|
110V AC
|
50/60
|
50
|
018F6730
|
018F6280
|
|
|
BE230CS
|
230V AC
|
018F6732
|
018F6282
|
|||
|
BE012DS
|
12V DC
|
18W
|
DC
|
018F6756
|
|
|
|
BE024DS
|
24V DC
|
018F6757
|
||||
Dimension & Code No of BG Solenoid Coils:
|
Coil type
|
Voltages
|
Power
|
Frequency (Hz)
|
Code no
|
|
BG024AS
|
24V AC
|
12Watt, 26VA
|
50
|
018F6807
|
|
BG110AS
|
110V AC
|
018F6811
|
||
|
BG230AS
|
220-230V AC
|
018F6801
|
||
|
BG240AS
|
240V AC
|
018F6802
|
||
|
BG380AS
|
380-400V AC
|
018F6803
|
||
|
BG024BS
|
24V AC
|
60
|
018F6815
|
|
|
BG110BS
|
110V AC
|
018F6813
|
||
|
BG220BS
|
220V AC
|
018F6814
|
||
|
BG012DS
|
12V DC
|
20Watt
|
DC
|
018F6856
|
|
BG024DS
|
24V DC
|
018F6857
|
Dimension & Code No of AM Solenoid Coils:
|
Type
|
Voltage
|
Frequency
(Hz)
|
Power Consumption
|
Code No
|
|
|
W
|
VA
|
||||
|
AM024C
|
24V
|
60
|
5.5
|
11
|
042N0842
|
|
50
|
7.5
|
14
|
|||
|
AM110C
|
110V
|
60
|
5.5
|
11
|
042N0845
|
|
50
|
7.5
|
14
|
|||
|

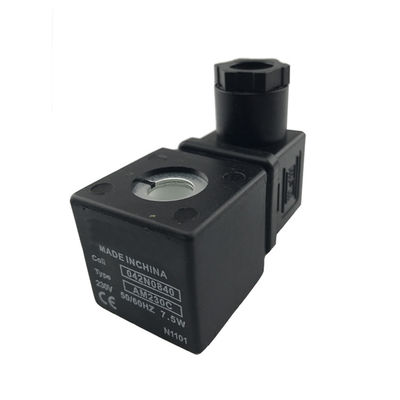

AM230C
|
230V
|
60
|
6.5
|
13
|
042N0840
|
|
50
|
9.5
|
18
|
|||
|
AM240C
|
240V
|
60
|
5.5
|
11
|
042N0841
|
|
50
|
7.5
|
15
|
|||
|
AM012D
|
12V
|
DC
|
8.5
|
-
|
042N0848
|
|
AM024D
|
24V
|
DC
|
9.0
|
-
|
042N0843
|
|
AP240C
|
208-240V
|
60
|
5.5
|
11
|
042N4291
|
|
230V
|
50
|
7.5
|
15
|
||
|
AP120B
|
110-120V
|
60
|
5.0
|
11
|
042N4292
|
|
AP024B
|
24V
|
60
|
5.0
|
11
|
042N4293
|
Dimension & Data of CSV Solenoid Coil:
|
Brando Model
|
BB10135040
|
|
Coil Type
|
CSV
|
|
Code No
|
032B5021
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
(50/60Hz)
|
|
Power
|
8W
|
|
Connector
|
DIN43650A
|
|
Protection Class
|
IP65
|
|
Insulation Class
|
Class H
|
More Refrigeration Valve For you to choose:
Danfoss Type Solenoid Valve Ammonia Solenoid Valve Castel Type Solenoid Valve
Solenoid Coil Expansion Valve Refrigerator Solenoid Valve
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
