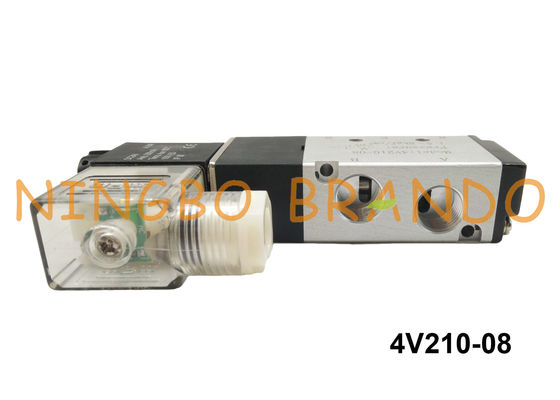

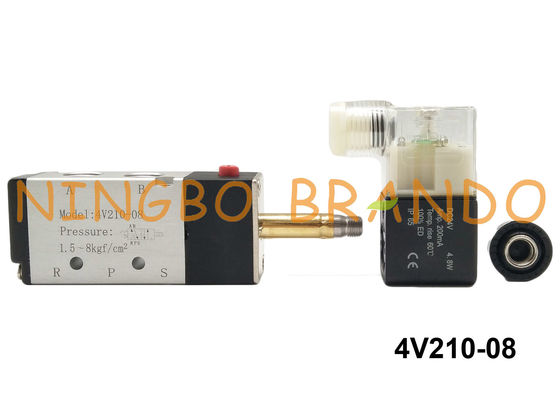

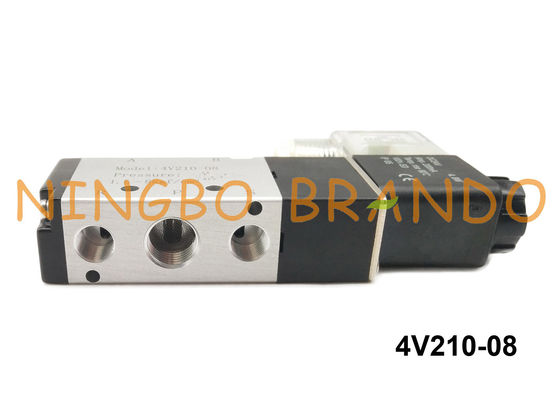

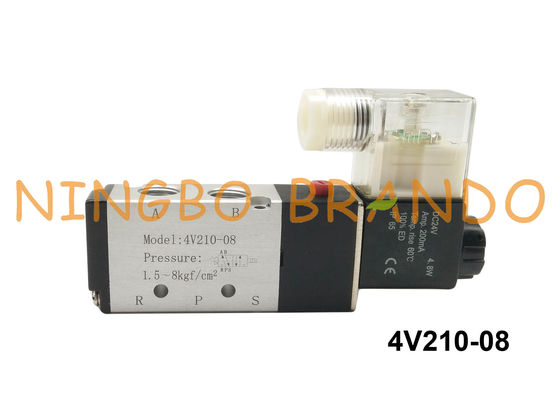

4V210-08 Solenoid Valve

4V210-08 Solenoid Valve

4V210-08 Solenoid Valve
video
4V210-08 Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V210-08
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 15 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Solenoid Valve Pipe Size: Inlet=Outlet=1/4'', Exhaust=1/8''
Available Thread: G, NPT, PT Position & Way: 5 Way 2 Position
Action: Internal Pilot Or External Pilot Working Fluid: Air ( To Be Filered By 40um Fitter Element)
Valve Body Material: Aluminum Alloy Electrical Connection: DIN Terminal, Grommet
Supply Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Operating Pressure: 0.15 To 0.8MPa (21 To 114Psi)
High Light:

Airtac Solenoid Valve 4V210-08

,

5/2 Way Pneumatic Solenoid Valve

,

4V210-08

4V210-08 Solenoid Valve



Product Advantages:

1. Pilot-oriented mode: optional for internal or external.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. It is available to form integrated valve group with the base to save installation space.
7. Affiliated manual devices are equipped to facilitate installation and debugging.

8. Serval standard voltage grades are optional.


Video of 4V210-08 Pneumatic Solenoid Valve:



Dimension of 4V210-08 Pneumatic Solenoid Valve:

4V210-08 5/2 Way Pneumatic Solenoid Valve

Technica Data of Pneumatic Solenoid Valve:

Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air (to be filtered by 40 μ m filter element)
Acting
Internal pilot or External pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 Way 2 Position
5 Way 3 Position
5 Way 2 Position
5 Way 3 Position
Operating Pressure
0.15 to 0.8MPa (21 to 114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec



Brando Production Video of Pneumatic Solenoid Valves:



More Pneumatic Solenoid Valves for you to choose:

Brando is a Pneumatic Solenoid Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).



4v1004v210-084v300a1

          *4V100 Series                           *4V200 Series                       *4V300 Series                          *4V400 Series

a1 a1 a3pneumatic fast fittings

              *5/2 Way                             *5/3 Way                                        *2/2 Way                  *Pneumatic Fast Fitting



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
