Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm

Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm

Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm
video
Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: PL
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Material: Plastic / Brass
Threaded Connection: G, NPT Wokring Pressure: 0-0.8MPa
Connecting Tube Material: PA, PU Connecting Tube OD: 3, 4, 6, 8, 10, 12, 16
Medium: Compressed Air Working Temperature: 0-60℃
High Light:

1/2'' Pneumatic Hose Fittings

,

12mm Pneumatic Hose Fittings

,

Pneumatic Quick Coupler

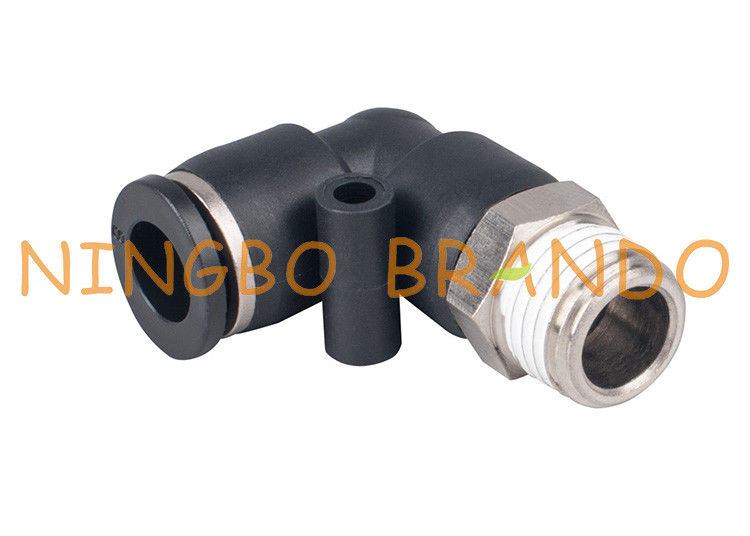

Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm



Push-Fit fittings, also known as Push-to-Connect fittings are east-to-install pneumatic accessories that work by pushing the tubing in to engage it—it's like putting a cap lid on. Pneumatic fittings are used for valves, control panels and a large variety of other domestic and industrial applications.



Brando’s broad selection of pneumatic fittings provide connectivity solutions for a whole range of pneumatic applications. We offer a broad portfolio of products within our pneumatic fittings range and have plenty of material options and device configurations to suit the demands of your project which are easy to install. They also have the capability to withstand a variety of industrial media. Our pneumatic fittings are suitable for use in a wide variety of applications serving across many of today's major industrial markets.



Dimension & Order Code of Pneumatic Hose Fittings:



Straight Male Fitting:

Picture Dimension Part No. R D L1 L S Inner Hex
Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 0 Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 1
PC4 M5X0.8 4 6 22 10 3
M6X1 4 6 22 10 3
R1/8" 4 8 21 12 3
R1/4" 4 9 18 13 3
R3/8" 4 10 20 17 3
R1/2" 4 11 22 21 3
PC6 M5X0.8 6 6 23 12 4
M6X1 6 6 23 12 4
R1/8" 6 8 22 12 4
R1/4" 6 9 22 13 4
R3/8" 6 10 21 17 4
R1/2" 6 11 23 21 4
PC8 R1/8" 8 8 27 14 4
R1/4" 8 9 24 14 6
R3/8" 8 10 22 17 6
R1/2" 8 11 23 21 6
PC10 R1/8" 10 8 29 27 4
R1/4" 10 9 30 17 6
R3/8" 10 10 28 17 8
R1/2" 10 11 24 21 8
PC12 R1/8" 12 8 31 19 4
R1/2" 12 9 32 19 6
R3/8" 12 10 29 19 10
R1/2" 12 11 31 21 10



Elbow Push Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 2 Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 3
PL4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PL6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PL8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PL10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PL12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



Branch Tee Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 4 Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 5
PT4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PT6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PT8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PT10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PT12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



List of All Plastic Pneumatic Hose Fittings:

Push Fit Quick Connect Male Elbow Pneumatic Hose Fittings 1/2'' 12mm 6



Directions for use!



1. The Tube Fitting is Prohibited Where Spark and Fire Might Be Occurred.

2. Do Not Exceed 145Psi Pressure.

3. Working Temperature: 0-60°c,do Not Use Outside the Service 4.
Temperature Range to Prevent Deformation of the Sealing Material and Easy Leakage.

5. Do Not Use in Places with Too Much Dust or Particles

6. Do Not Use Any Medium Other Than Air. the Product is Limited to Air or Vacuum Environment.

7. After Completing the Connection, Please Gently Pull the Tube with Your Hand to Make Sure That It is Completely Connected Without Falling Off.

8. Make Sure That the Cutting Surface of the Pipe is Vertical, There is No Scar on the Outer Circumference of the Pipe and the Pipe is Not Oval.

9. Never Apply Tube Joint with Additional External Load(bending,twist or Pulling),otherwise Damage or Leakage Will Be Occurred.

10.When Inserting the Pipe, It Must Be Inserted into the Bottom of the Joint. Failure to Insert the Pipe into the Bottom May Lead to Air Leakage.
