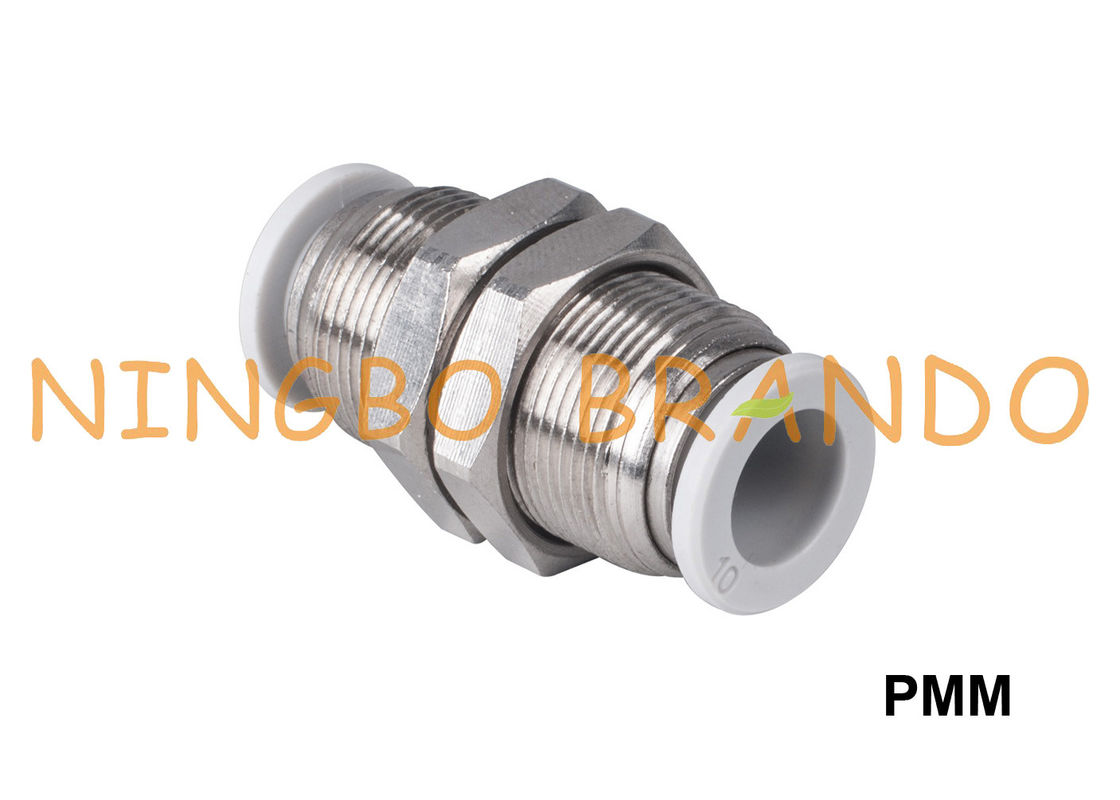

PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''
video
PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: PMM
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Type: Bulkhead Union
Tube OD (Inch): 1/8", 1/4", 3/8", 1/2" Tube OD (Mertric): 4mm, 6mm, 8mm, 10mm, 12mm
Color: Blue, Black, Gray Material: Plastic
Working Pressure Range: 0 To 0.8MPa Working Temperature Range: 0 To +60℃
High Light:

1/4'' Pneumatic Hose Fittings

,

Bulkhead Pneumatic Hose Fittings

,

Pneumatic Push Fittings Plastic

PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''


Bulkhead union push-in fittings. Classical bulkhead union with push-in fittings on each side. Bulkhead connections are used when there is a need to move pneumatic tube through some obstacle. Simply drill a hole, push one part of bulkhead through it, and then screw second part onto the other side. Available for all common pneumatic tube diameters.

BRANDO’s push to connect fittings (or push-in fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 inch OD to 1/2 inch OD. Numerous configurations are available to meet your connection requirements.



Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃



Specifications of PMM Bulkhead Union Pneumatic Hose Fittings:

                                             PMM Bulkhead Union Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2'' 0

Model No
M
φD1
L
S
PMM4
M12X1
4
30
16
PMM6
M14X1
6
32
17
PMM8
M16X1
8
36
19
PMM10
M18X1
10
41
21
M20X1
10
41
24
PMM12
M20X1
12
44
24
M22X1
12
44
26


List of All Push To Connect Pneumatic Hose Fittings:

PL Male 90 Degree Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2'' 1



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
