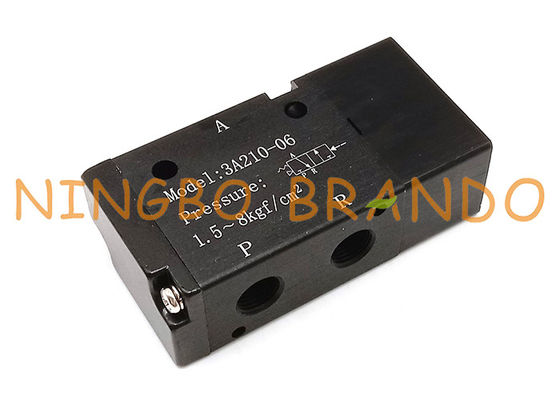

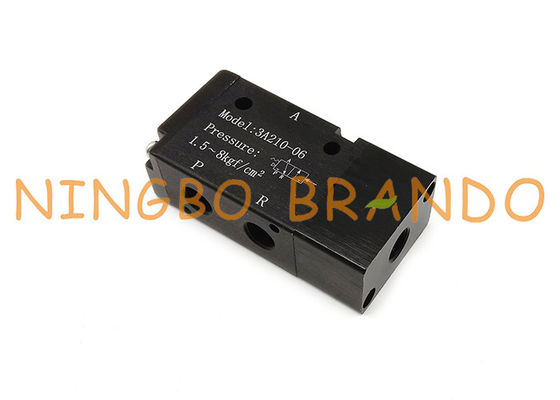

3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve

3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve

  • 3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve
  • 3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve
3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 3A210-06
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1/8 Inch Valve Type: Single Solenoid 3 Port 2 Position
Voltage: 220VAC 110VAC 24VDC 12VDC Working Pressure: 0.15 To 0.8MPa(21-114psi)
Temperature: -20 To +70℃ Max. Frequency: 5 Cycle/sec
Body Material: Aluminum Alloy Fluid: Air (to Be Filtered By 40 μm Filter Element)
Application: Automation CV: 0.78
High Light:

3A210-06 Air Pilot Valve

,

Exterior Control Air Pilot Valve

,

AirTAC Type 3A210-06

3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve

Installation & Usage:

1.Before installing, be sure the valve hasn't been damaged via transportation.

2.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3.Please notice whether the installation condition accords with technical requirements (such as“act-uation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4.Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.

5.Take measure to avoid vibration and frozen.

6.Firstly press the base gasket into the base, and then connect the base with the valve body by the affiliated screws. The base gasket can be pressed into the installation places that are not used temporarily, and then seal them with affiliated blank cap. When the system expands, take the blank cap off and install relative air valves;

7.To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.



Technical Data:

Model 3A210-06 3A220-06 3A210-08 3A220-08
Fluid Air(to be filtered by 40 μ m filter element)
Acting Exterior control
Port Size In=Out=1/8'' In=Out=1/4''
CV 0.78 0.89
Valve Type  3 Port 2 Position
Operating Pressure 21~114psi(0.15~0.8MPa)
Temperature -20~70℃
Material of body Alumium Alloy
Max. frequency 5 cycle/sec




Dimension Diagram:
3A210-06 1/8'' 3 Position 2 Way Exterior Control Air Pilot Valve 0
