1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings

1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings

1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings
video
1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: PKB
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Material: Plastic / Brass
Threaded Connection: G, NPT Wokring Pressure: 0-1MPa
Connecting Tube Material: PA, PU Connecting Tube OD: 3, 4, 6, 8, 10, 12, 16
Medium: Compressed Air Working Temperature: 0-60℃
High Light:

1/4'' Pneumatic Hose Fittings

,

8mm Pneumatic Hose Fittings

,

Pushfit Fittings Pneumatic

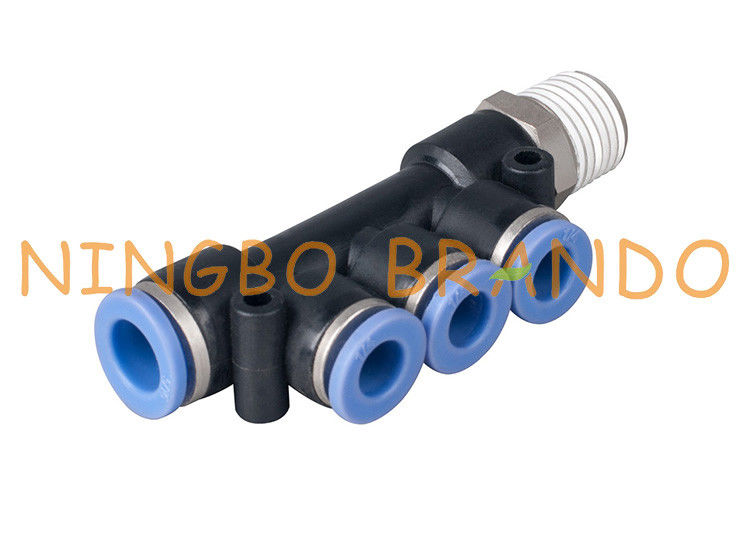

1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings



Push-in fittings are used in all types of compressed air systems, but are most commonly used in applications having pneumatic cylinders, tools, and equipment. They can be used for water applications, but extra measures have to be taken (controlled surge pressure, water compatibility, insert ring, etc.) The push on connection method allows for rapid changing of components, so it is ideal if you have one air source for multiple tools that can be exchanged out.



Features:

1. Fluid: Air, vacuum, water
2. Pressure Range: 0-1Mpa (120 psi)
3. Max pressure: 1.5 Mpa
4. Temperature Range: 0-60℃
5. Applicable Tube: PU / NYLON / Soft PE hose air fittings



Dimension & Order Code of Pneumatic Hose Fittings:



Straight Male Fitting:

Picture Dimension Part No. R D L1 L S Inner Hex
1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 0 1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 1
PC4 M5X0.8 4 6 22 10 3
M6X1 4 6 22 10 3
R1/8" 4 8 21 12 3
R1/4" 4 9 18 13 3
R3/8" 4 10 20 17 3
R1/2" 4 11 22 21 3
PC6 M5X0.8 6 6 23 12 4
M6X1 6 6 23 12 4
R1/8" 6 8 22 12 4
R1/4" 6 9 22 13 4
R3/8" 6 10 21 17 4
R1/2" 6 11 23 21 4
PC8 R1/8" 8 8 27 14 4
R1/4" 8 9 24 14 6
R3/8" 8 10 22 17 6
R1/2" 8 11 23 21 6
PC10 R1/8" 10 8 29 27 4
R1/4" 10 9 30 17 6
R3/8" 10 10 28 17 8
R1/2" 10 11 24 21 8
PC12 R1/8" 12 8 31 19 4
R1/2" 12 9 32 19 6
R3/8" 12 10 29 19 10
R1/2" 12 11 31 21 10



Elbow Push Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 2 1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 3
PL4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PL6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PL8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PL10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PL12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



Branch Tee Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 4 1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 5
PT4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PT6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PT8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PT10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PT12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



List of All Plastic Pneumatic Hose Fittings:

1/4'' 8mm Branch Triple Push To Quick Connect Pneumatic Hose Fittings 6



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
