Product Name: Pneumatic Hose Fittings Material: Plastic / Brass
Threaded Connection: G, NPT Wokring Pressure: 0-0.8MPa
Connecting Tube Material: PA, PU Connecting Tube OD: 3, 4, 6, 8, 10, 12, 16
Medium: Compressed Air Working Temperature: 0-60℃
High Light:

1/2'' Pneumatic Hose Fittings

,

12mm Pneumatic Hose Fittings

,

Push Fit Pneumatic Fittings

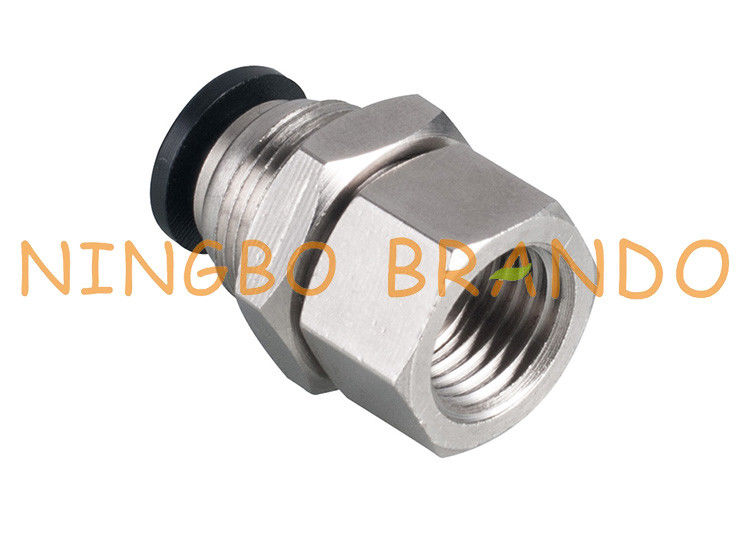

1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings



Brando offers plastic push in fittings , which is also called pneumatic fittings for it usually being used in pneumatic systems. It is made from Acetal copolymer, with a stainless steel collect design that ensures high quality clamping with various types of tube such as nylon tubes, polyethylene tubes and polyurethane tubes. It can be easily connected or disconnected by one touch and is used for a wide variety of models to meet all demands. And its oval sleeve also makes it possible to apply and remove the tube easily in confined space. Meanwhile, over 50 different models in imperial; metric sizes and hybrid are also available.



FEATURES:
1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.



Dimension & Order Code of Pneumatic Hose Fittings:



Straight Male Fitting:

Picture Dimension Part No. R D L1 L S Inner Hex
1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 0 1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 1
PC4 M5X0.8 4 6 22 10 3
M6X1 4 6 22 10 3
R1/8" 4 8 21 12 3
R1/4" 4 9 18 13 3
R3/8" 4 10 20 17 3
R1/2" 4 11 22 21 3
PC6 M5X0.8 6 6 23 12 4
M6X1 6 6 23 12 4
R1/8" 6 8 22 12 4
R1/4" 6 9 22 13 4
R3/8" 6 10 21 17 4
R1/2" 6 11 23 21 4
PC8 R1/8" 8 8 27 14 4
R1/4" 8 9 24 14 6
R3/8" 8 10 22 17 6
R1/2" 8 11 23 21 6
PC10 R1/8" 10 8 29 27 4
R1/4" 10 9 30 17 6
R3/8" 10 10 28 17 8
R1/2" 10 11 24 21 8
PC12 R1/8" 12 8 31 19 4
R1/2" 12 9 32 19 6
R3/8" 12 10 29 19 10
R1/2" 12 11 31 21 10



Elbow Push Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 2 1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 3
PL4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PL6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PL8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PL10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PL12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



Branch Tee Male Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 4 1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 5
PT4 M5X0.8 4 11 6 19 25 10
M6X1 4 11 6 19 25 10
R1/8" 4 11 8 19 27 12
R1/4" 4 11 9 19 28 13
R3/8" 4 11 10 19 30 17
R1/2" 4 11 11 19 31 21
PT6 M5X0.8 6 13 6 20 26 12
M6X1 6 13 6 20 26 12
R1/8" 6 13 8 20 28 12
R1/4" 6 13 9 20 29 13
R3/8" 6 13 10 20 31 17
R1/2" 6 13 11 20 32 21
PT8 R1/8" 8 14 8 23 31 14
R1/4" 8 14 9 23 32 14
R3/8" 8 14 10 23 33 17
R1/2" 8 14 11 23 35 21
PT10 R1/8" 10 18 8 27 35 27
R1/4" 10 18 9 27 36 17
R3/8" 10 18 10 27 37 17
R1/2" 10 18 11 27 39 21
PT12 R1/8" 12 21 8 30 37 19
R1/2" 12 21 9 30 38 19
R3/8" 12 21 10 30 39 19
R1/2" 12 21 11 30 41 21



List of All Plastic Pneumatic Hose Fittings:

1/2'' 12mm Bulkhead Female Straight Push To Connect Pneumatic Hose Fittings 6



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
