1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve

1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve

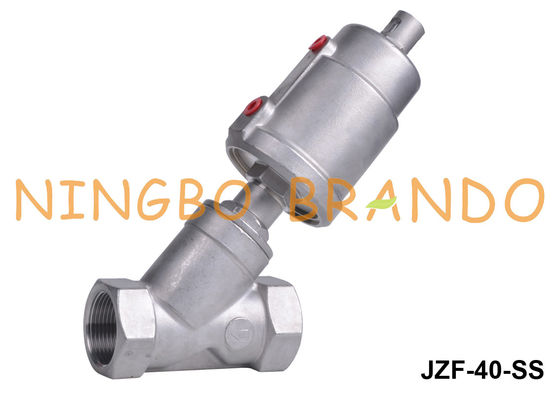

  • 1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve
1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN40-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1 1/2'' Port Connections: Threaded
Orifice Size: 40mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
High Light:

Angle Seat Valve DN40

,

Pneumatically Operated 2/2 Way Angle Seat Valve

,

Angle Seat Valve For Steam

1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve



Air actuated or pneumatically controlled angle seat globe piston valves are designed to work from a controlled compressed air supply, which is utilised to directly control the opening and or closing function of the angle valve. However just about any clean, inert non corrosive liquid or gas controlling media can be used so long as valve actuator and controlling solenoid valve materials on construction are suited.



Angle seat valves consists of two main parts; the valve body and seals to control the media flow and the valve controlling head or actuator; that receives the compressed air supply, which are joined together via a well packed (sealed) stem.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Stainless Steel Actuator

                                             1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve 0

Nominal Diameter
Actuator
(mm)
D
R
P
G
H
L
L1
T
DN15
50
62
33.5
1/8''
1/2''
126
137
68
13
DN20
50
62
33.5
3/4''
138
144
75
16
DN25
50
62
33.5
1''
148
156
90
16
DN32
63
76
42
1 1/4''
182
188
110
21
DN40
63
76
42
1 1/2''
182
190
116
21
DN50
63
76
42
2''
195
205
136
22
DN65
80
96
52
2 1/2''
280
252
185
30
DN80
100
114
63
3''
320
280
220
33
DN100
100
114
63
4''
350
300
235
35



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open



Angle Seat Valve Disassembly Display:
