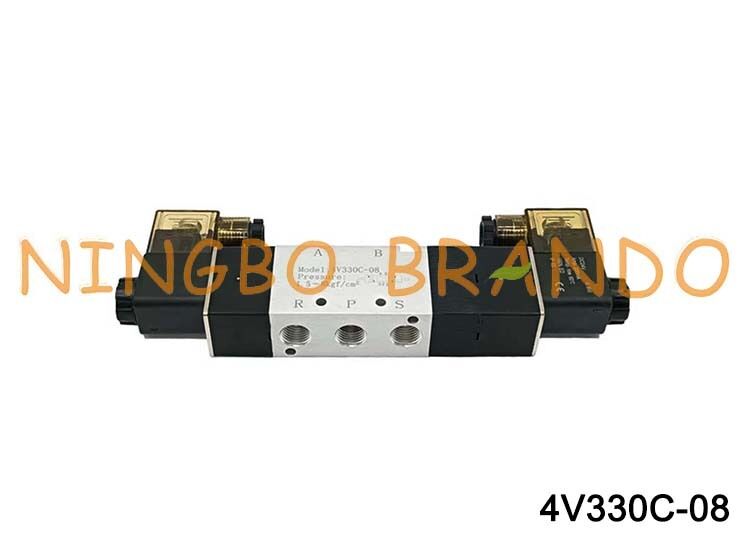

Name: AIRTAC Type 4V330C-08 Solenoid Valve | 5/3 Way Closed Center Pneumatic Valve 1/4 Inch
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 4V330C-08
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

AIRTAC Type 4V330C-08 Solenoid Valve | 5/3 Way Closed Center Pneumatic Valve 1/4 Inch

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	4V330C-08

Payment & Shipping Terms:

Minimum Order Quantity:	300pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=Exhaust=1/4''	Pressure Range:	0.15 To 0.8 MPa
Body Material:	Aluminum Alloy	Valve Type:	5 Way 3 Position
Max Pressure Resistance:	1.2MPa	Fluid:	Air
Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:	AIRTAC 4V330C-08 , AirTAC 4V330C-08 solenoid valve , 4V330C-08 pneumatic valve

AIRTAC Type 4V330C-08 Solenoid Valve | 5/3 Way Closed Center Pneumatic Valve 1/4 Inch

The AIRTAC type 4V330C-08 is a 5-port, 3-position (5/3 way) double solenoid pneumatic valve from the AirTAC type 4V300 series. It features a closed center configuration, which blocks all ports when both solenoids are de-energized, allowing a pneumatic cylinder to stop and hold its position temporarily.

Designed for industrial automation and pneumatic motion control systems, the 4V330C-08 uses a spool-type structure with reliable sealing performance, fast response, and a compact 1/4 inch port design suitable for a wide range of cylinder control applications.

Technical Data of 4V300 Series Solenoid Valve:

Model	4V310-08	4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10	4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air (to be filtered by 40 μm filter element)
Acting	internal pilot or external pilot
Port Size	in=out=exhaust=1/4''			in=out=3/8'', exhaust=1/4''
Orifice Size	4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
