Name: 4A210-06 Pneumatic Air Valve 5/2 Way Directional Control Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 4A210-06
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

4A210-06 Pneumatic Air Valve 5/2 Way Directional Control Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	4A210-06

Payment & Shipping Terms:

Minimum Order Quantity:	300pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=Exhaust=1/8''	Pressure Range:	0.15 To 0.8 MPa (21 To 114 Psi)
Body Material:	Aluminum Alloy	Valve Type:	5/2 Way
Max Pressure Resistance:	1.5 MPa (215 Psi)	Product Name:	Air Pilot Pneumatic Valve
Highlight:	4A210-06 pneumatic valve , 1/8 inch pneumatic valve , air control valve

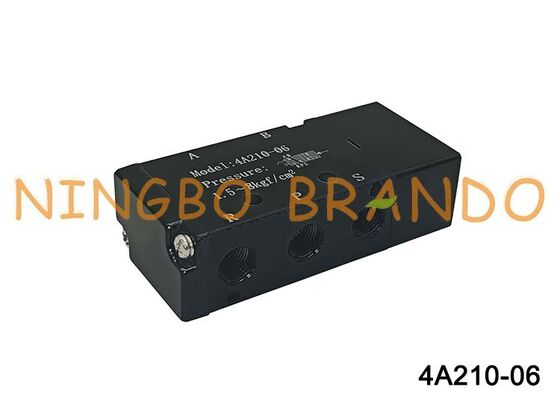

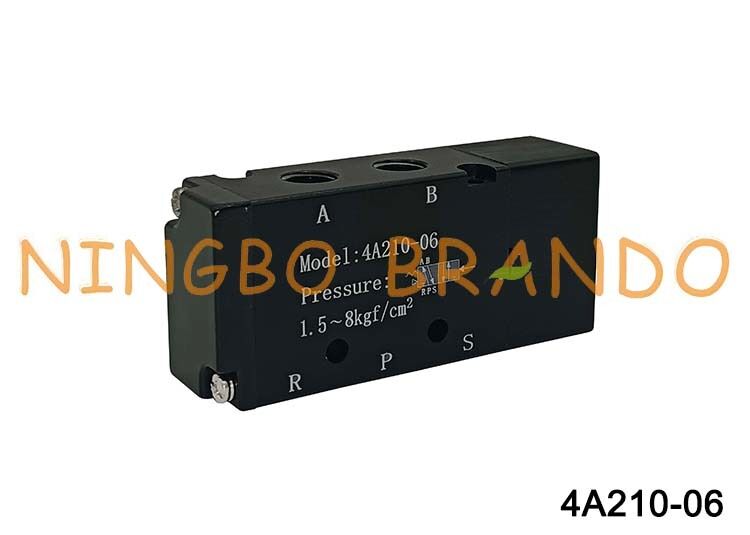

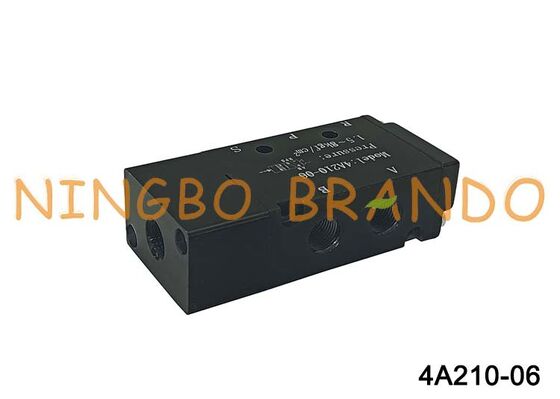

4A210-06 Pneumatic Air Valve 5/2 Way Directional Control Valve

The 4A210-06 pneumatic solenoid valve is a high-performance directional control valve designed for controlling the airflow direction in pneumatic automation systems. Featuring a 5-port, 2-position (5/2-way) configuration, it is commonly used to operate double-acting pneumatic cylinders and other air-driven actuators.

Built with a compact aluminum alloy body and precision internal components, the 4A210-06 provides fast switching, stable operation, and long service life. Its 1/8" port size makes it suitable for compact pneumatic equipment, automated machinery, assembly lines, and industrial control applications.

Data of 4A200 Series Pneumatic Control Valves:

Model	4A210-06 4A220-06	4A230C-06 4A230E-06 4A230P-06	4A210-08 4A220-08	4A230C-08 4A230E-08 4A230P-08
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Exterior Control
Port Size	In=Out=Exhaust=1/8''		In=Out=1/4'', Exhaust=1/8''
Orifice Size	25.00 mm2 (Cv=0.78)	18.00 mm2 (Cv=0.67)	30.00 mm2 (Cv=0.89)	18.00 mm2 (Cv=0.67)
Valve Type	5 way 2 position	5 way 3 position	5 way 2 position	5 way 3 position
Working Pressure	0.15~0.8MPa (21~114psi)
Max. Pressure Resistance	1.5MPa (215psi)
Temperature	5~50 ℃
Material of Body	Aluminum Alloy
Max. frequency	5 cycle/sec
