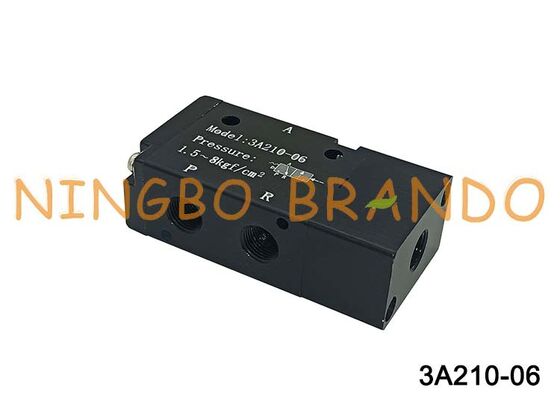

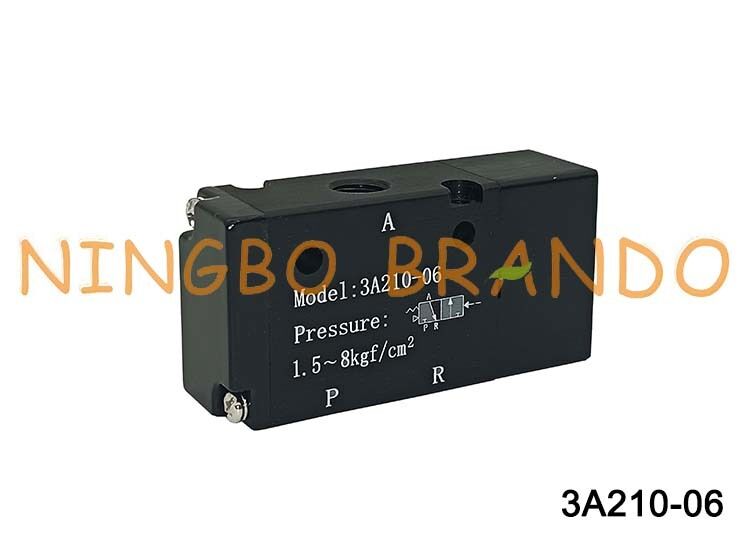

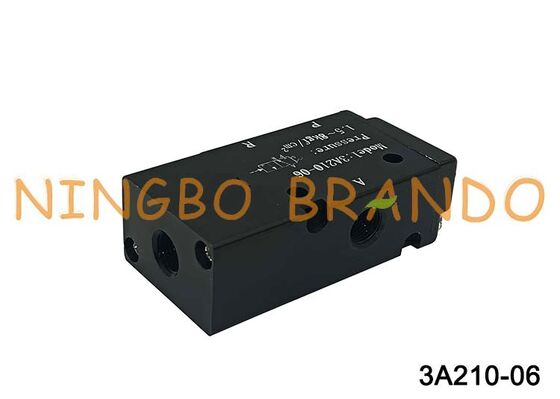

Name: Pneumatic Control Valve 3A210-06 1/8 Inch 3A200 Series
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 3A210-06
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

Pneumatic Control Valve 3A210-06 1/8 Inch 3A200 Series

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	3A210-06

Payment & Shipping Terms:

Minimum Order Quantity:	300pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=1/8''	Pressure Range:	0.15 To 0.8 MPa
Body Material:	Aluminum Alloy	Function:	3 Way 2 Position
Max Pressure Resistance:	1.5 MPa	Action:	Exterior Control
Fluid:	Air (to Be Filtered By 40μm Filter Element)	Temperature Range:	-20 To +70℃
Max Frequency:	5 Cycle/ Second
Highlight:	Air valve 3A200 Series , 3A210-06 Air pilot valve , AIRTAC pneumatic control valve 3A210-06

Pneumatic Control Valve 3A210-06 1/8 Inch 3A200 Series

3A210-06 is a 3-port, 2-position (3/2-way) pneumatic air pilot valve from the AirTAC 3A200 series. It is used to switch compressed air flow in pneumatic control systems.

Typical applications: controlling small pneumatic cylinders, pilot circuits, and directional switching where an air signal (rather than an electrical coil) is used.

Technical Data of 3A200 Series Pneumatic Air Pilot Valve:

Model	3A210-06	3A220-06	3A210-08	3A220-08
Fluid	Air (to be filtered by 40μm filter element)
Acting	exterior control
Port Size	In=Out=1/8''		In=Out=1/4''
Orifice Size	3A210-08, 3A220-08: 17.0mm² (Cv=1.0)
Valve Type	3 way 2 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Presure	1.2 MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle / sec

Dimension of 3A210-06 Pneumatic Air Pilot Valve:

3A210-06 Normally Open Normally Closed Pneumatic Air Pilot Valve 3/2 Way 0

Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves	3/2 Way Pneumatic Valves	5/2 Way Pneumatic Valves	5/3 Way Pneumatic Valves

Namur Solenoid Valves	FRL Unit	Pneumatic Cylinders	Silencers and Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
