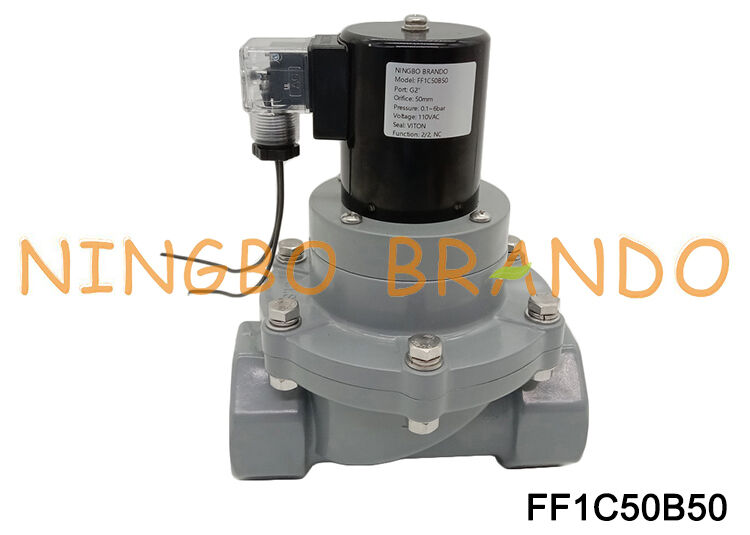

2'' CPVC Anti-Corrosive Solenoid Valve DN50 Chemical Valve FF1C50B50

The 2'' CPVC Anti-Corrosive Solenoid Valve is model FF1C50B50, designed for automated on/off control of chemical, acid, alkali, and other corrosive liquids. It uses a CPVC valve body with EPDM or FKM sealing options and a pilot-operated piston structure.

CPVC Body for Corrosive Media

The CPVC body is intended for applications where the valve body needs resistance to chemical media. The manufacturer describes this CPVC series as suitable for chemical, acid, alkali and corrosive-liquid applications.

The choice between EPDM and FKM should be based on the actual medium, concentration and operating temperature. CPVC and the selected seal material should be checked against the specific chemical rather than treating the valve as universally compatible with every corrosive fluid.

Typical Applications

The 2'' CPVC solenoid valve can be used in:

Chemical processing systems
Acid and alkali dosing
Corrosive-liquid transfer
Water and wastewater treatment
Chemical dispensing equipment
Industrial fluid automation
Chemical storage and distribution systems

For system sizing, the 50 mm orifice and Cv 40 should be considered together with required flow rate, inlet/outlet pressure, pressure differential, medium viscosity and operating temperature.

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
