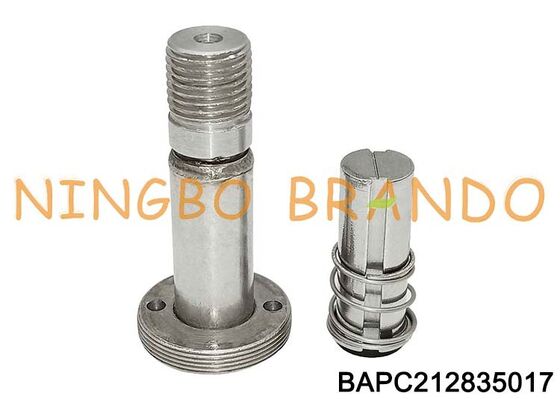

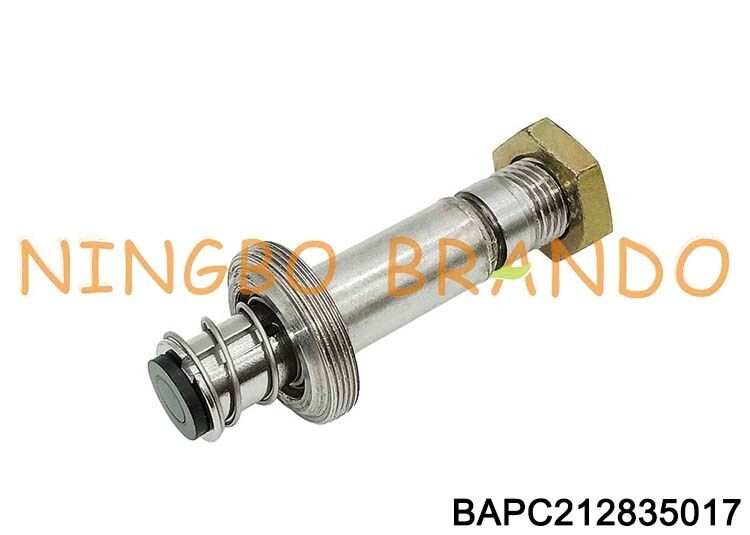

Stainless Steel Solenoid Armature Brass Clip Solenoid Stem

Stainless Steel Solenoid Armature Brass Clip Solenoid Stem

1.Brand:BRANDO

2.NO,:BAPC212835017

3.Tube out diameter:12.8mm

4.Tube height:35.0mm

5.Item weight:69g

6.Thread height:11.8mm

7.Voltage:Both AC/DC

8.Movable core height:32.2mm

9.Solenoid armature height:51.6mm

10.Depth:25.1mm

11.Material:stainless steel and NBR

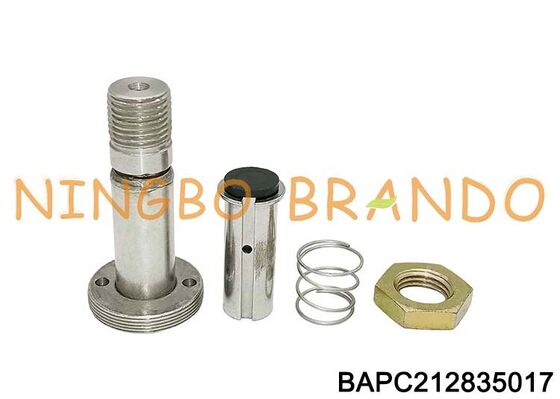

12.Component:Armature,plunger,external spring,Brass clip,NBR for sealing

Dimension of Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
