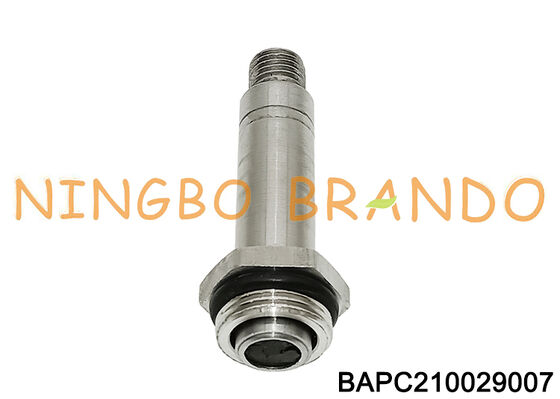

2/2 Way NC Armature Assembly for LPG CNG Filling Station Gas Solenoid Valve

2/2 Way NC Armature Assembly for LPG CNG Filling Station Gas Solenoid Valve

Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:10.0mm
Installation Height for Coil Assembling:29.0mm
Plunger Seal for Orifice Diameter:6.5mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:LPG CNG Filling Station Solenoid Valve

Dimension of Armature Assembly:

Technical Data:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
