300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V

300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V

  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
  • 300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: H12S008B02
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: High Pressure Solenoid Valve Port Size: G3/8''
Orifice Size: 10mm Body Material: Stainless Steel
Seal Material: PEEK Working Medium: Water, Air, Gas, Liquid, Etc
Max Working Pressure: 300 Bar Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

300 bar High Pressure Solenoid Valve

,

3/8'' High Pressure Solenoid Valve

,

High Pressure Stainless Steel Solenoid Valve

300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V





Technical Data:



Model No. Port Size Orifice Size CV Working pressure (bar) Body Seal Function
220VAC
110VAC
24VAC
24VDC
 12VDC
H12S10B03 3/8'' 10mm 3.5 6 to 360 6 to 300 6 to 250 SS304 PEEK 2 Way, NC
H12S15B04 1/2'' 15mm 4.7
H12S20B06
3/4''
 20mm 7
H12S25B25 1'' 25mm 10

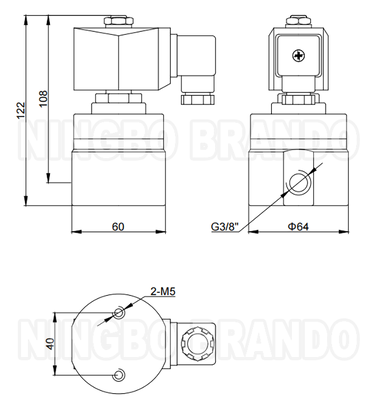

Main Dimension:

300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V



Our Production:

300 bar High Pressure Solenoid Valve 3/8'' 220V 110V 24V 12V



Similar Products:

High Pressure Solenoid Valve 200 bar High Pressure Solenoid Valve 350 bar 360 bar high pressure solenoid valve High Pressure Solenoid Valve 360 bar
Max 300 bar Max 350 bar Max 360 bar Max 360 bar
