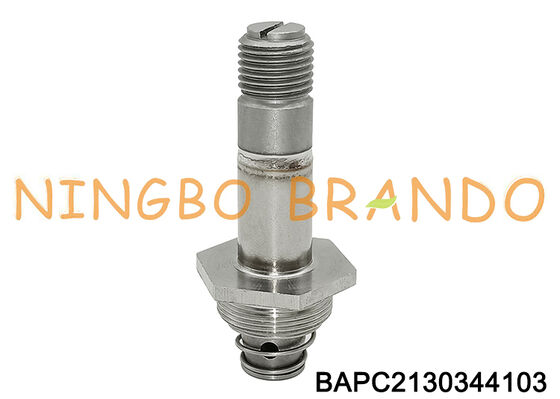

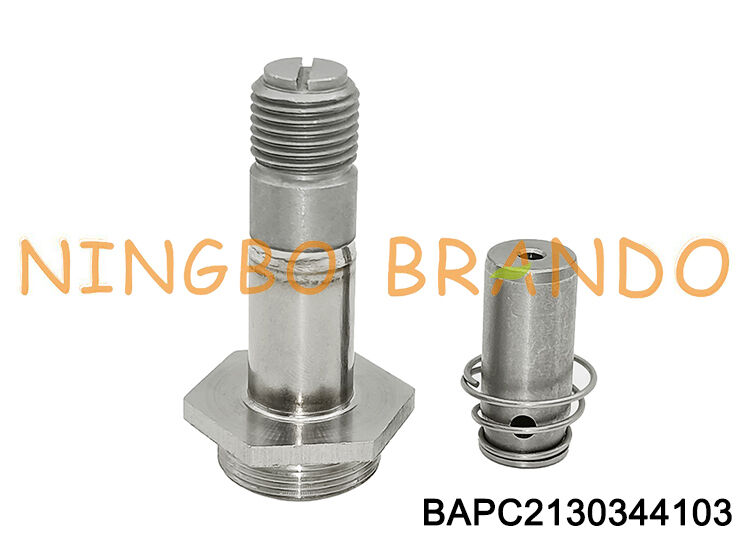

GC Type Solenoid Valve Armature 2 Way NC Solenoid Plunger Tube And Iron Core

GC Type Solenoid Valve Armature 2 Way NC Solenoid Plunger Tube And Iron Core

This 2 way normally closed armature is popularly used in GC solenoid valves; the guide tube is stainlesss steel 304; the standard seals used are made of NBR, EPDM or FKM are available on request. This expands the range of applications to include a variety of media for lower and higher temperature ranges. The armature assembly is the pressure-tight internal part of a solenoid valve. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.

Technical Data:

	BRANDO Model	BAPC2130344103
	Guide Tube Material	SS304
	Seal Material	NBR (standard) EPDM, FKM (available)
	Function	2 Way Normally Closed

Fitted Coil:

	BRANDO Model	BB13241286
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	13VA, 10W, 14W
	Other voltage and power can be customized
	Connection Type	Flying Leads

Our Production:

More Solenoid Coils and Armatures:

FAQ: How to choose a right solenoid armature?

1. Working voltage: AC or DC
2. Function: 2/2 way or 3/2 way
3. De-energized state: Normal Closed, Normal Open or Divert
4. Stroke of the matched valve body
5. Valve’s orifice size
6. Working environment: working medium, temperature, pressure, etc

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
