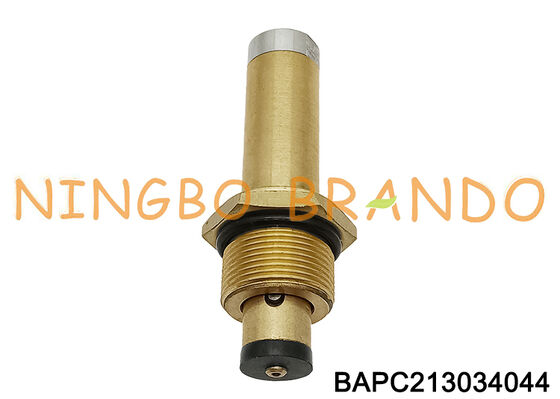

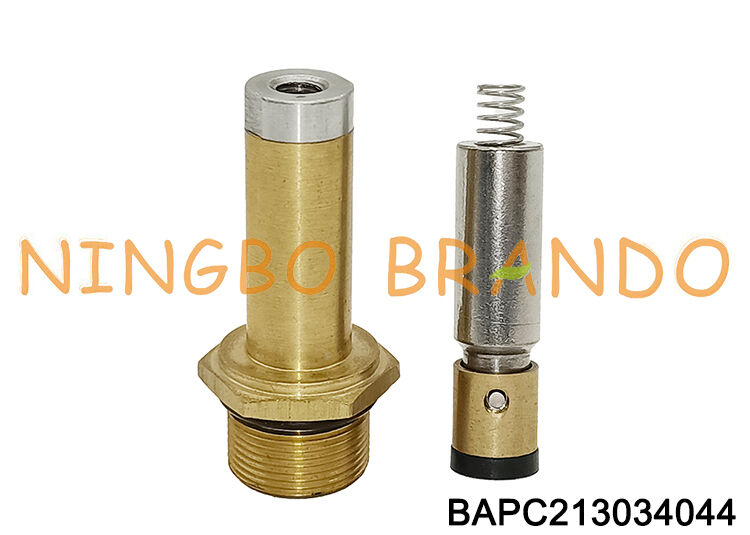

13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem

13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem

  • 13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem
  • 13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem
13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: None
Model Number: BAPC213034044
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiation
Packaging Details: inner boxes,cartons,pallets
Delivery Time: Negotiation
Payment Terms: T/T,PayPal,Western Union
Supply Ability: 300000sets per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Armature Core Tube Material: Brass
Seal Material: NBR Function: 2 Way Normally Closed
Plunger Tube Outer Diameter: 13mm Mounting Type: Thread
Application: LPG/CNG
Highlight:

LPG CNG Solenoid Valve Armature Stem

,

LPG CNG Plunger Tube Assembly

,

M18 Seat Solenoid Valve Armature

13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem


This solenoid armature is popularly used in LPG reducers, CNG reducers. The color of the solenoid coil can be customized according to your requirements, such as black, red, blue, etc. The CNG fuel system releases high-pressure gas from the fuel tank and transfers it through the fuel lines. The pressure regulator reduces the pressure, which is compatible with the engine fuel injection system. Then, CNG transfers to the combustion or manifold chamber, mixing with air. The spark plug ignites the compressed gas and starts the engine.


Technical Data:

Model Number
BAPC213043044
Guide Tube Outer Diameter
13.0mm
Installation Height for Coil Assembling
29.1mm
Plunger Seal for Orifice Diameter
10.6mm
Guide Tube Material
Brass
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
M18x1 Thread
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Applicaiton Examples
LPG, CNG
Customized Service
Provided, welcome show us sample or drawing


Main Dimension:

13mm OD M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Armature Stem 0
