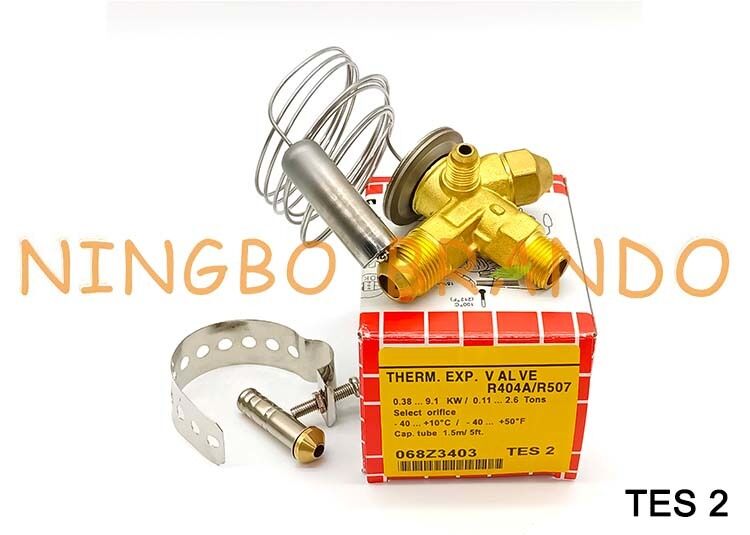

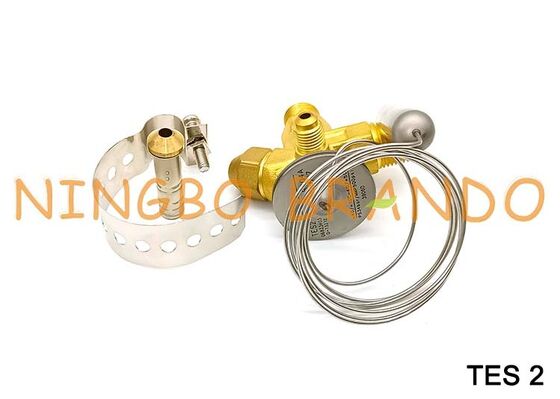

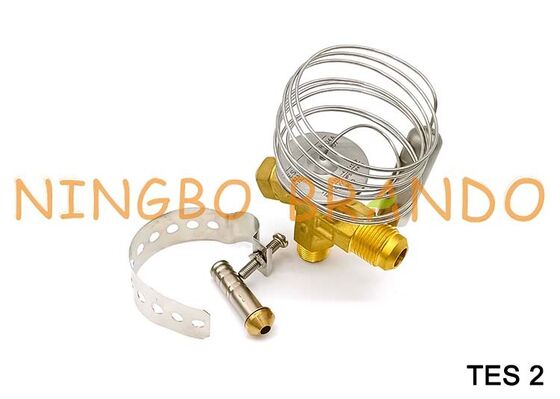

Name: TES2 068Z3403 R404A/R507 Thermostatic Expansion Valve TES 2
Brand: Ningbo Brando Hardware Co., Ltd
SKU: TES 2
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

TES2 068Z3403 R404A/R507 Thermostatic Expansion Valve TES 2

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	TES 2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Thermostatic Expansion Valve	Inlet X Outlet Size:	3/8'' X 1/2''
Equalization Size:	1/4''	Connection:	Flare X Flare
Refrigerant:	R404A, R507	Capillary Tube Length:	1.5m
Pressure Equalization:	Externally Equalized	Orifice Size:	0X, 00, 01, 02, 03, 04, 05, 06
Highlight:	TES2 Danfoss R404A R507A expansion valve , DANFOSS Expansion Valve TES2 , TES2 Danfoss R404A R507

TES2 068Z3403 R404A/R507 Thermostatic Expansion Valve TES 2

Expansion valves are devices used to control the refrigerant flow in a refrigeration system. They remove pressure from the liquid refrigerant to allow expansion or change of state from a liquid to a vapor in the evaporator. Expansion valves serve two purposes: controlling the amount of refrigerant entering the evaporator and maintaining the pressure difference between the condenser (high-pressure side) and the evaporator (low-pressure side).

Technical Data of T2/TE2 Thermal Expansion Valve:

Model	Equalization	Connection Type	Capillary Tube	Connection (inlet x outlet)		Equalization Connection
				inch	mm
T2	Internal	Flare (SAE)	1.5m	3/8'' x 1/2''	10x12	1/4'' (6mm)
TE2	External
T2	Internal	Solder (ODF)
TE2	External

Ordering Code of T2/TE2 Thermal Expansion Valve:

Connection Type	Equalization	R22	R407C	R134a	R404A/R507	R12
Flare (SAE)	Internal	TX2	TZ2	TN2	TS2	TF2
Flare (SAE)	External	TEX2	TEZ2	TEN2	TES2	TEF2
Solder (ODF)	Internal	TX2	TZ2	TN2	TS2	TF2
Solder (ODF)	External	TEX2	TEZ2	TEN2	TES2	TEF2

Capacity of T2/TE2 Thermal Expansion Valve:

Orifice no	Rated capacity in tons (TR)				Rated capacity in kW
Orifice no	R22	R407C	R134a	R404A/R507	R22	R407C	R134a	R404A/R507
0X	0.15	0.16	0.11	0.11	0.5	0.5	0.4	0.38
00	0.3	0.3	0.25	0.21	1	1.1	0.9	0.7
01	0.7	0.8	0.5	0.6	2.5	2.7	1.8	1.6
02	1.0	1.1	0.8	0.6	3.5	3.8	2.6	2.1
03	1.5	1.6	1.3	1.2	5.2	5.6	4.6	4.2
04	2.3	2.5	1.9	1.7	8	8.6	6.7	6
05	3	3.2	2.5	2.2	10.5	11.3	8.6	7.7
06	4.5	4.9	3.0	2.6	15.5	16.7	10.5	9.1

Dimension of T2/TE2 Thermal Expansion Valve:

TES2 068Z3403 R404A/R507 Thermostatic Expansion Valve TES 2 0

Product Video of TE2 Thermostatic Expansion Valve:
