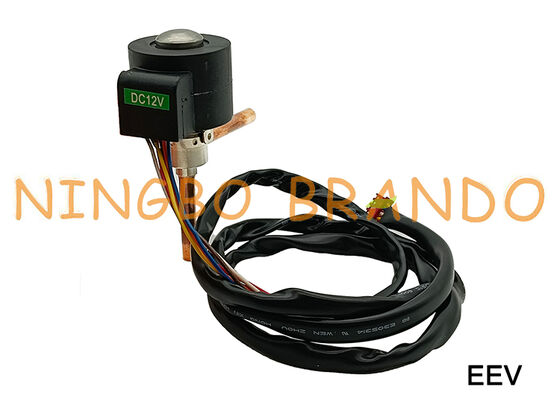

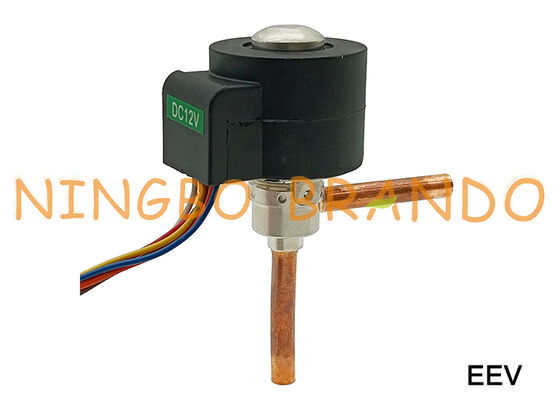

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	EEV

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Electronic Expansion Valve	Port Size:	6.35mm OD, 7.94mm OD
Orifice Size:	0.6 To 4.5mm	Cooling Capacity:	0.7 To 67.7 KW (for R22)
Applicable Refrigerant:	R22, R410A, R407C, R32, R134A, R404A, R507C, Etc	Max Operating Pressure:	43 Bar
Max Operating Pressure Differential:	35 Bar	Rated Voltage:	12VDC (±10%), Rectangular Wave
Highlight:	EEV Electronic Expansion Valve 12v , EXV Electronic Expansion Valve 12vdc , Electronic Expansion Valve EEV EXV

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

Electronic Expansion Valves (EEV, EXV) are designed for use in air conditioning and refrigeration systems or in heat pumps. The valve controls the automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control and energy saving. The valve can also be used e.g. for suction line pressure controls. These valves provide bidirectional operation to control the refrigerant flow rate in heating or cooling mode.

Specifications:

Applicable Refrigerants	R22, R410A, R407C, R32, R134A, R404A, R507C, etc
Medium Temperature	-30 to +70℃
Ambient Temperature	-30 to +60℃
Relative Humidity	0 to 95% RH
Coil Voltage	12VDC (±10%), rectangular wave
Coil Current	260mA/phase (20°C)
Coil Resistance	46±3.7 Ω/phase (20°C)
Coil Insulation Class	E
Coil Protection Class	IP67
Excitation Mode	1 to 2 phase excitation, monopole actuation
Excitation Rate	30pps to 90pps
Activation of self-holding mechanism	Maintain excitation in stop position min. 0.1 to 1 sec
Min. motion time from completely open to completely closed	5.8s (90pps)

Technical Data:

Model No	Nominal Cooling Capacity (kW)					Kv (m³/h)	MOP (bar)	MOPD (bar)	ROP (bar)
Model No	R22	R407C	R410A	R32	R134A	Kv (m³/h)	MOP (bar)	MOPD (bar)	ROP (bar)
EEV0.6A	0.7	0.7	0.8	1.2	0.5	0.01	43	35	≥25
EEV0.8A	1.2	1.3	1.4	2.1	0.9	0.017
EEV1.0A	2.7	2.8	3.1	4.6	2.1	0.025
EEV1.3A	5.3	5.7	6.2	9.2	4.2	0.05
EEV1.6A	9.0	9.5	10.5	15.5	7.0	0.08
EEV1.8A	10.6	11.3	12.5	18.4	8.3	0.1
EEV2.0A	13.2	14.0	15.4	22.8	10.3	0.16
EEV2.2A	14.2	15.1	16.6	24.5	11.1	0.2
EEV2.4A	16.7	17.7	19.5	28.8	13.0	0.23
EEV3.0A	27.6	29.4	32.3	47.7	21.6	0.39			≥15
EEV3.2A	30.4	32.4	35.6	52.6	23.8	0.43			≥15
EEV4.0B	50.6	53.8	59.2	87.5	39.5	0.5			≥7
EEV4.5B	67.7	72.0	79.2	117.0	52.9	0.7			≥7

Main Dimension:

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC 0

Model No	Orifice Size (mm)	Dimension (mm)
		F	G	H	φd	φN
EEV0.6A	0.6	80	36	30	6.35	17.35
EEV0.8A	0.8
EEV1.0A	1.0
EEV1.3A	1.3
EEV1.6A	1.6
EEV1.8A	1.8
EEV2.0A	2.0
EEV2.2A	2.2
EEV2.4A	2.4
EEV3.0A	3.0	83	39	39	7.94
EEV3.2A	3.2
EEV4.0B	4.0	101	47	51
EEV4.5B	4.5
