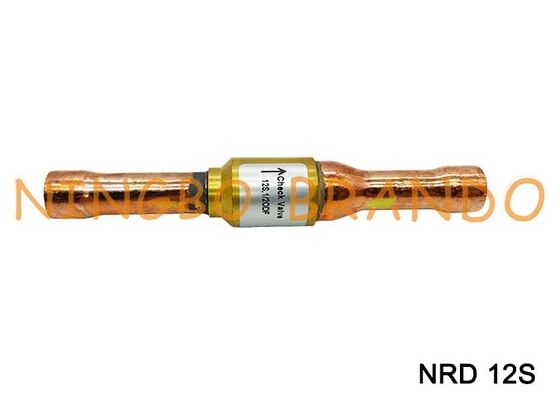

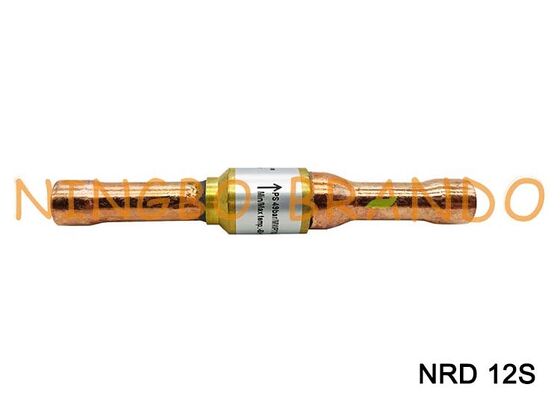

Name: Danfoss Type Collector Pressure Regulator NRD12S 1/2'' Solder 020B1132 020B1136
Brand: Ningbo Brando Hardware Co., Ltd
SKU: NRD 12S
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

Danfoss Type Collector Pressure Regulator NRD12S 1/2'' Solder 020B1132 020B1136

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	NRD 12S

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Receiver Pressure Regulator	Port Size:	1/2''
Connection:	Solder (ODF)	Opening Differential Pressure:	Start Opening = 1.4 Bar, Fully Open = 3 Bar
Max Working Pressure:	PS/MWP = 46 Bar	Code No:	020B1132, 020B1136
Highlight:	Danfoss Nrd 12s , Danfoss Differential Pressure Valve NRD 12s , 020B1136 NRD 12s

Danfoss Type Collector Pressure Regulator NRD12S 1/2'' Solder 020B1132 020B1136

Condensing pressure regulator, type KVR opens upon a rise in pressure on the inlet side, i.e. when the pressure in the condenser reaches the set value. KVR regulation is dependent only on the inlet pressure. Pressure variations on the outlet side of the regulator do not affect the degree of opening, since type KVR has an equalizing bellows. The effective area of this bellows corresponds to that of the valve seat. In addition, the regulator is equipped with an effective damping device to safe-guard against pulsations which can normally occur in refrigeration plant. The damping device contributes to ensuring a long working life for the regulator without impairing regulation accuracy.

Differential pressure valve type NRD begins to open when the pressure drop in the valve is 1.4 bar.

Technical Data:

Refrigerants	HCFC, HFC and HC
Max Working Pressure	PS/MWP = 46 bar
Medium Temperature Range	-45 to +130℃
Opening Differential Pressure	Start Opening: Δp = 1.4 bar Fully open: Δp = 3 bar

NRD 12s Dimension:

Danfoss Type Collector Pressure Regulator NRD12S 1/2'' Solder 020B1132 020B1136 0
