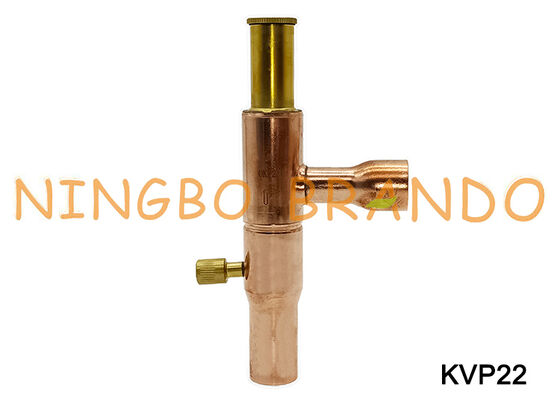

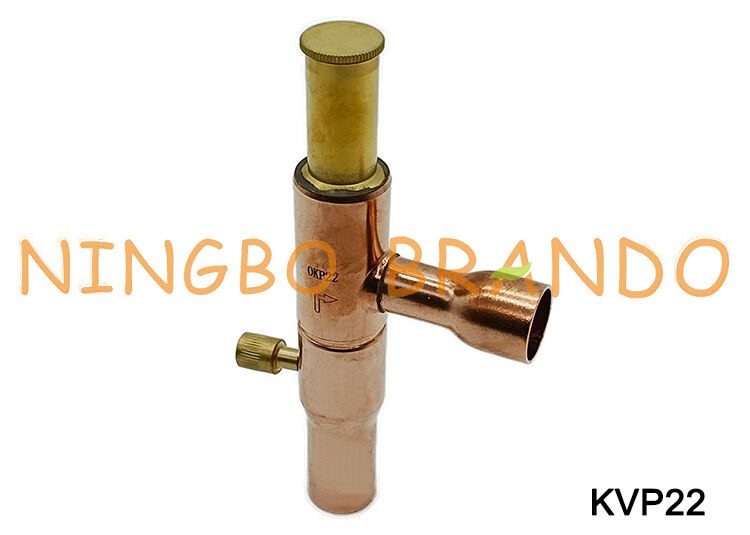

Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	KVP 22

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Condensing Pressure Regulator	Port Size:	7/8''
Connection:	Solder (ODF)	Regulation Range:	0 To 5.5 Bar, Factory Setting = 2 Bar
Max Working Pressure:	18 Bar	Medium Temperature Range:	-45 To +130℃
Refrigerant:	CFC, HCFC, HFC	Code No:	034L0094
Highlight:	DANFOSS KVP 22 Expansion Pressure Regulator Valve , DANFOSS KVP 22 , Evaporator pressure regulator KVP 22

Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22

An Evaporator Pressure Regulator (EPR) is a mechanical or electronic valve installed in the suction line of a refrigeration or air-conditioning system. Its primary function is to prevent the pressure (and thus the temperature) inside the evaporator from dropping below a specific, preset minimum.

Technical Data:

Refrigerants	CFC, HCFC, HFC
Adjustment range	0 to 5.5 bar, Factory Setting = 2 bar
Maximum working pressure	18 bar
Maximum test pressure	Pe = PSx1.1 = 19.8 bar
Medium temperature range	-45 – 130 °C
MAX P-band	KVP 12 – 22 = 1.7 bar
MAX P-band	KVP 28 – 35 = 2.8 bar
KV Value With Offset 0.6bar	KVP 12 – 22 = 1.7 m³/h
KV Value With Offset 0.6bar	KVP 28 – 35 = 2.8 m³/h
Kv Value With MAX P-band	KVP 12 – 22 = 2.5 m³/h
Kv Value With MAX P-band	KVP 28 – 35 = 8 m³/h

Ordering Code:

Model	Rated capacity (kW)				Flare	Code No	Solder Connection	Code No
Model	R22	R134a	R404A/R507	R407C	inch	Code No	inch	Code No
KVP 12	7.1	5.3	6.3	6.5	1/2''	034L0021	1/2''	034L0023 034L0028
KVP 15	7.1	5.3	6.3	6.5	5/8''	034L0022	5/8''	034L0029
KVP 22	7.1	5.3	6.3	6.5	/		7/8''	034L0025
KVP 28	17.8	13.2	15.9	15.4	/		1 1/8''	034L0026 034L0031
KVP 35	17.8	13.2	15.9	15.4	/		1 3/8''	034L0032

Dimension:

Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22 0

Model	NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
Model	NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
KVP 12	19	19	179	99	66	64	41	10	30
KVP 15	24	24	179	99	66	64	41	12	30
KVP 22	24	24	179	99	66	64	41	17	30
KVP 28	24	24	259	151	103	105	48	20	43
KVP 35	/	/	259	151	103	105	48	25	43
