Home ProductsRefrigeration Solenoid Valve

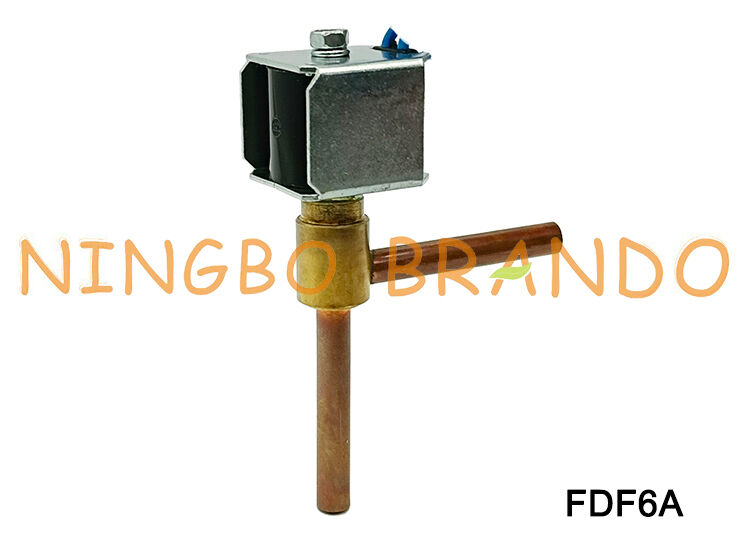

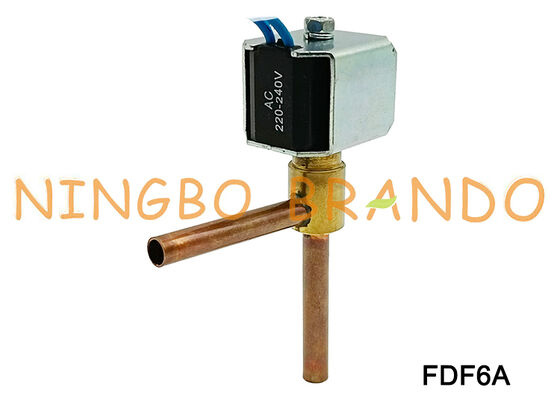

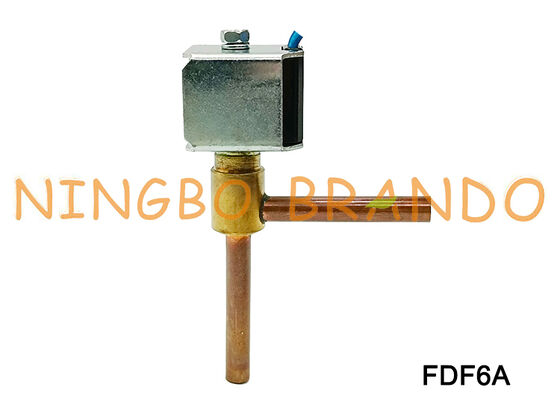

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump

  • FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
  • FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
  • FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: None
Model Number: FDF6A
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: Negotiation
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Refrigeration Solenoid Valve Tube OD (mm): 7.94
Tube OD (inch): 5/16'' Orifice Size: 5.8mm
Wiring Type: Flying Leads Actuation: Pilot Operated
Voltage: 24VDC, 24VAC, 110VAC, 220VAC Application: Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc.
Max Operating Pressure: 4.5 MPa
Highlight:

FDF6A refrigeration solenoid valve

,

FDF6A Two-Way Solenoid Valve

,

FDF6A58 Refrigeration Solenoid Valve

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump


Product Features of FDF series solenoid valves:

1. Direct operated or pilot operated, 2 way normally closed solenoid valve. Normally open type is available.

2. For use with non-corrosive refrigerant.

3. Compactly designed for use in small appliances produced in quantity such as room air conditioners, dehumidifiers, heat pumps and ice making machines.

4. Various piping configuration available.


Technical Data of FDF NC Series Solenoid Valve:

Model
FDF2A94
FDF2.5A06
FDF3A08
FDF4A10
FDF6A58
FDF8A21
FDF11A05
FDF13A07
Actuation
Direct
Pilot
Kv(m³/h)
0.08
0.2
0.26
0.3
0.56
1.29
2.4
3.44
Max. OPD
(MPa)
3.4
3.4
3.4
3.4
3.4
2.8
2.8
2.8
Min. OPD (MPa)
0
0.01
0.01
0.01
0.01
0.01
0.02
0.02
MOP (MPa)
4.5
Normal Position
NC
Tube OD (inch)
1/4''
1/4''
5/16''
1/4''
5/16''
3/8''
1/2''
5/8''
Tube OD (mm)
6.35
6.34
7.94
6.35
7.94
9.52
12.7
15.88


Main Dimension of FDF NC Series Solenoid Valve:

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 0

Model
Measurement (mm)
L
L1
L2
FDF 2A 94
67
32
34
FDF 2.5A 08
85
38
38
FDF 3A 08
81
35
36
FDF 4A 10
81
35
38
FDF 6A 58
81
35
36
FDF 8A 21
114
62
62
FDF 11A 16
113
61
61
FDF 13A 12
114
62
62


More Refrigeration Solenoid Valves for you to choose:

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 1 FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 2 FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 3
Danfoss Type Solenoid Valve Castel Type Solenoid Valve Sanhua Type Solenoid Valve


More Expansion Valves for you to choose:

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 4 FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 5 FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 6
Thermal Expansion Valve Automatic Expansion Valve Electronic Expansion Valve


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
