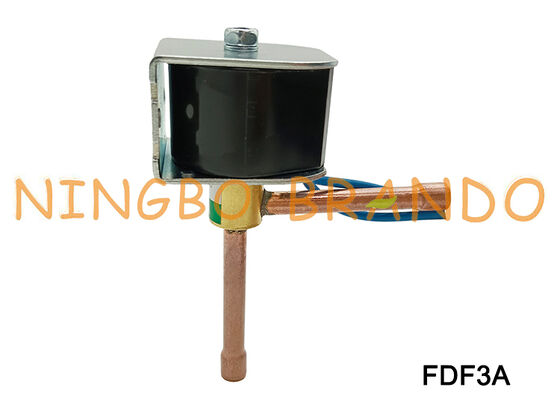

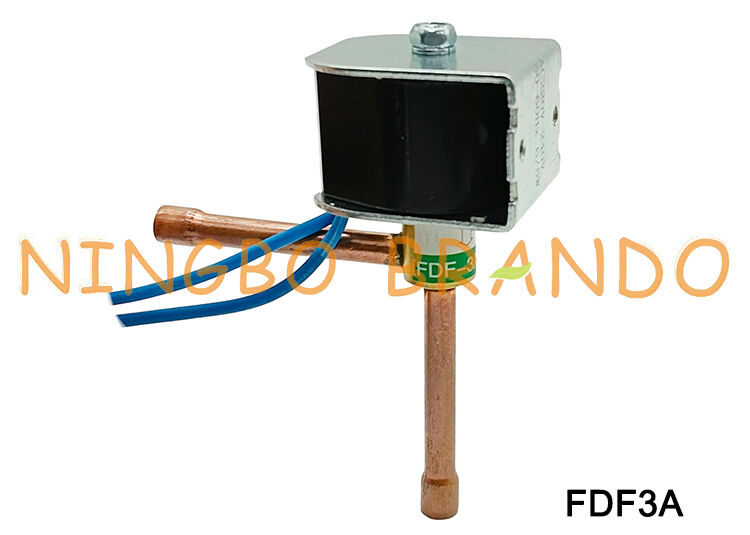

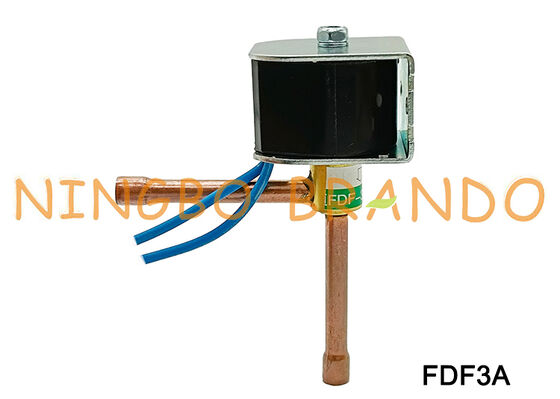

Name: FDF3A FDF3A08 Sanhua Type Air Conditioner and Ice Machine Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: FDF3A
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

FDF3A FDF3A08 Sanhua Type Air Conditioner and Ice Machine Solenoid Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	FDF3A

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Refrigeration Solenoid Valve	Tube OD (mm):	6.34
Wiring Type:	Flying Leads	Normal Position:	NC (Normally Closed)
Actuation:	Direct Acting	Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Application:	Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc.	Max Operating Pressure:	4.5 MPa
Highlight:	solenoid valve FDF3A , FDF3A air conditioning solenoid valve , SANHUA Solenoid Valve FDF3A

FDF3A FDF3A08 Sanhua Type Air Conditioner and Ice Machine Solenoid Valve

FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.

* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow

Technical Data of FDF NC Series Solenoid Valve:

Model	FDF2A94	FDF2.5A06	FDF3A08	FDF4A10	FDF6A58	FDF8A21	FDF11A05	FDF13A07
Actuation	Direct	Pilot
Kv(m³/h)	0.08	0.2	0.26	0.3	0.56	1.29	2.4	3.44
Max. OPD (MPa)	3.4	3.4	3.4	3.4	3.4	2.8	2.8	2.8
Min. OPD (MPa)	0	0.01	0.01	0.01	0.01	0.01	0.02	0.02
MOP (MPa)	4.5
Normal Position	NC
Tube OD (inch)	1/4''	1/4''	5/16''	1/4''	5/16''	3/8''	1/2''	5/8''
Tube OD (mm)	6.35	6.34	7.94	6.35	7.94	9.52	12.7	15.88

Main Dimension of FDF NC Series Solenoid Valve:

FDF3A FDF3A08 Sanhua Type Air Conditioner and Ice Machine Solenoid Valve 0

Model	Measurement (mm)
Model	L	L1	L2
FDF 2A 94	67	32	34
FDF 2.5A 08	85	38	38
FDF 3A 08	81	35	36
FDF 4A 10	81	35	38
FDF 6A 58	81	35	36
FDF 8A 21	114	62	62
FDF 11A 16	113	61	61
FDF 13A 12	114	62	62
