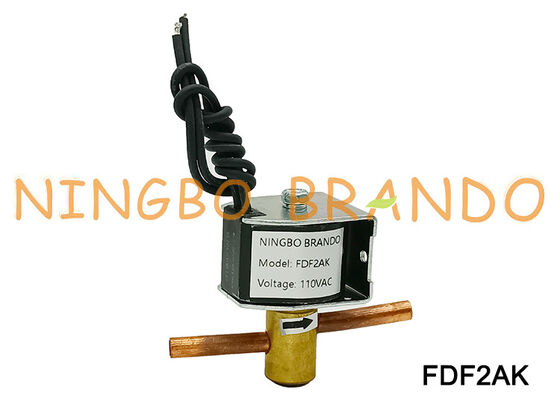

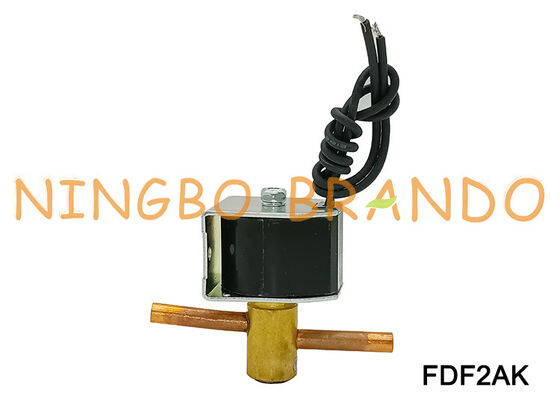

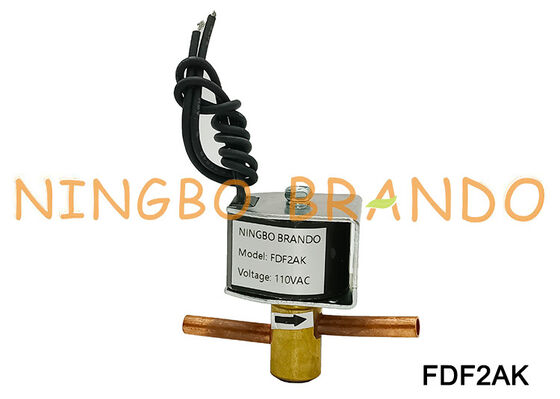

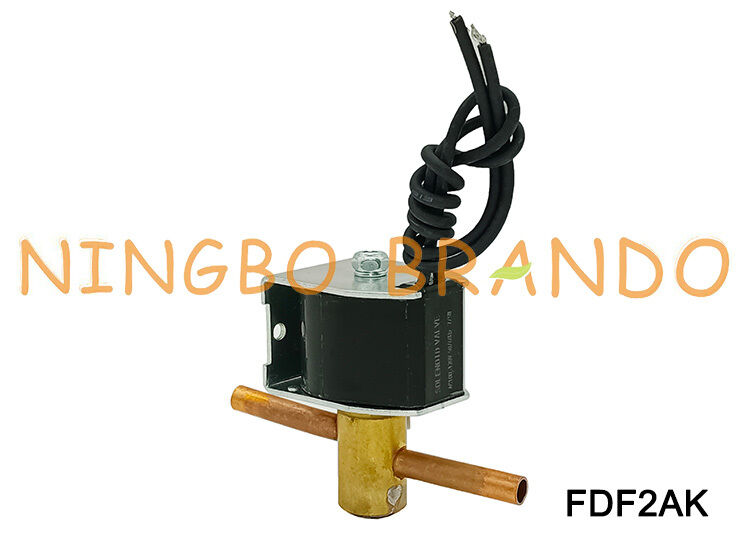

SANHUA Type FDF2AK01 Solenoid Valve Normally Open 24V 110V 220V

SANHUA Type FDF2AK01 Solenoid Valve Normally Open 24V 110V 220V

FDF2AK series solenoid valves are direct operated, normally open solenoid valves, mainly used in refrigerant control of various
devices such as refrigerating and freezing systems, air conditioners and heat pumps.

Features:
1. Compact design
2. Low energy consumption
3. Excellent operation performance

General Specifications:
1. Applicable for all common HCFC, HFC refrigerants such as:

R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A1)
2. Medium temperature TS min./max.: -30°C / 120°C
3. Ambient temperature: -30°C / +50°C
4. Relative humidity: 0 to 95% RH
5. Installation position:
1) Liquid, suction and discharge line
2) Coil upwards, coil axis ±15° tolerance versus vertical axis
3) Flow direction corresponds to the arrow

Technical Data:
