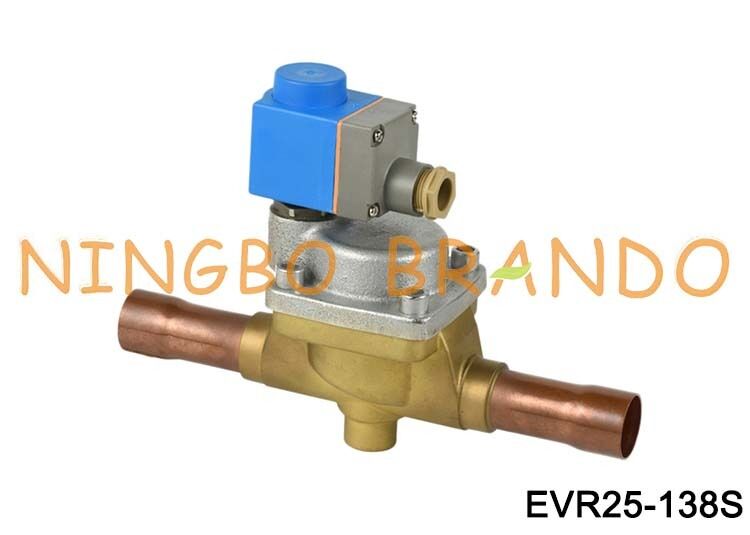

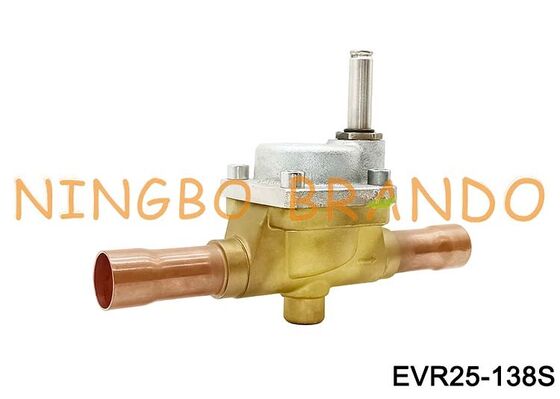

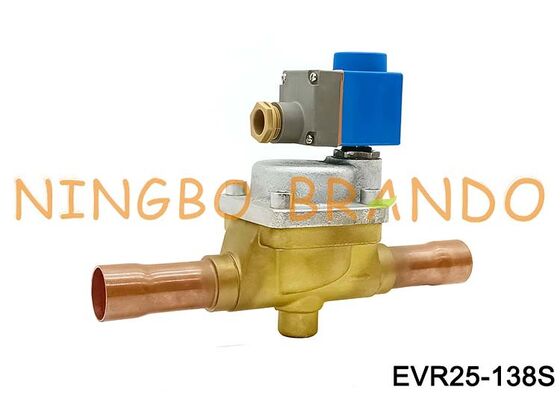

Solenoid Valve Danfoss Type 1-3/8'' Evr25 Odf 220VAC 24VDC
The shown is danfoss type EVR 25 solenoid valve, 1 3/8'' (35mm) ODF solder port size, 2 way normally closed, 12V DC, 24V DC, 24V AC, 110V AC, 220V AC voltages (other voltages can be customized), ordering code: 032F2207, 032L2207. EVR solenoid valves are suitable for HFC, CFC, and HCFC. The temperature range for the medium is -40°C to +105°C The valves listed below are the ''normally closed'' type. ''Normally open'' valves are also available to order. Where there is a choice of body size with the same connections please check the duty requirements to ensure correct selection. Solenoid Valves are supplied WITHOUT Coils. Please order coils separately.
Main Dimension of EVR Series Solenoid Valve:
Model
Port Size
H1
H2
L
L2
SAE (Flare)
ODF (Solder)
Inch
mm
mm
mm
mm
mm
EVR 3
EVR 3
1/4''
6
14
71
102
7
EVR 3
EVR 3
3/8''
10
14
73
117
10
EVR 6
EVR 6
3/8''
10
14
79
111
10
EVR 6
EVR 6
1/2''
12.8
14
79
127
10
EVR 10
EVR 10
1/2''
12.8
16
79
127
10
EVR 10
EVR 10
5/8''
16
16
79
160
12
EVR 15
5/8''
16
19
86
176
12
EVR15
7/8''
22
19
86
176
17
EVR 20
7/8''
22
20
90
191
17
EVR 20
1 1/8''
28.8
20
90
214
22
EVR 22
1 3/8''
35
20
90
281
25
EVR 25
1 1/8''
28.8
38
138
256
22
EVR25
1 3/8''
35
38
138
281
25
EVR 32
1 3/8''
35
47
111
281
25
EVR 32
1 5/8''
42
47
111
281
29
EVR 40
1 5/8''
42
47
111
281
29
EVR 40
2 1/8''
54
47
111
281
34
Product Video of EVR 25 1 1/8'' Danfoss Type Solenoid Valve:
Ordering Code of EVR Solder Connections, Normally Closed (NC) - Separate Valve Bodies:
Ordering Code of EVR Flare Connections, Normally Closed (NC) - Separate Valve Bodies:
