DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve
DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve
DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: S1S25BF25
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 7 to 10 working days
Payment Terms: T/T,PayPal,Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Port Connection: Flanged
Port Size: 1'' Body Material: Stainless Steel 304
Seal Material: PTFE Working Medium: Hot Water, Steam, High Temperature Liquids, Etc
Medium Temperature: -5 To +300℃ Working Pressure: 0.5 To 16 Bar
Function: 2 Way Normally Closed Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

DN25 Stainless Steel Solenoid Valve

,

Steam Stainless Steel Solenoid Valve

,

High Temperature Valve

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve





Technical Data:

Model No
S1S15BF15
S1S20BF20
S1S25BF25
S1S35BF32
S1S40BF40
S1S50BF50
Pipe Connection
Flange
Port Size
F1/2''
F3/4''
F1''
F1-1/4''
F1-1/2''
F2''
Working Medium
Hot Water, Steam, High Temperature Liquids, etc
Operation
Piston Pilot Operated
Function
2 Way Normally Closed
Body Material
Stainless Steel 304
Seal Material
PTFE
Working Pressure
0.2 to 16 bar
Working
Temperature
-5 to +300℃
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

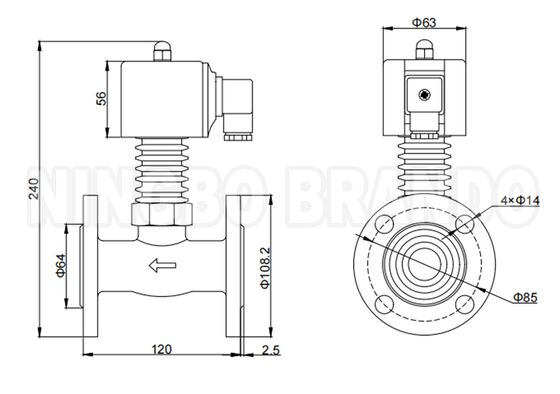

DN25 Flange High Temperature Solenoid Valve Dimension:

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 0



Our Production:

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 1



More Steam Solenoid Valves:

DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 2 DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 3 DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 4 DN25 Flange High Temperature Steam Stainless Steel Solenoid Valve 5
3/8'' to 2'', 16 bar 1'' to 2'', 16 bar 3/8'' to 2'', 25 bar 1'' to 2'', 25 bar



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
