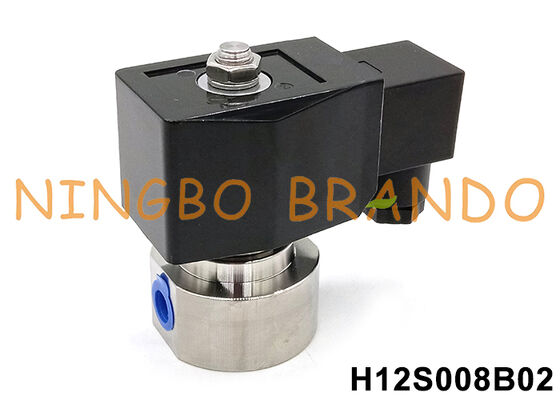

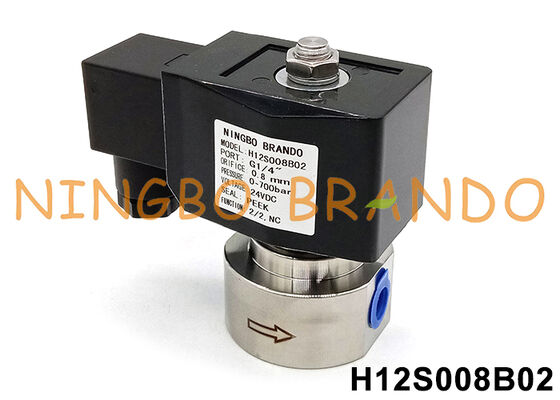

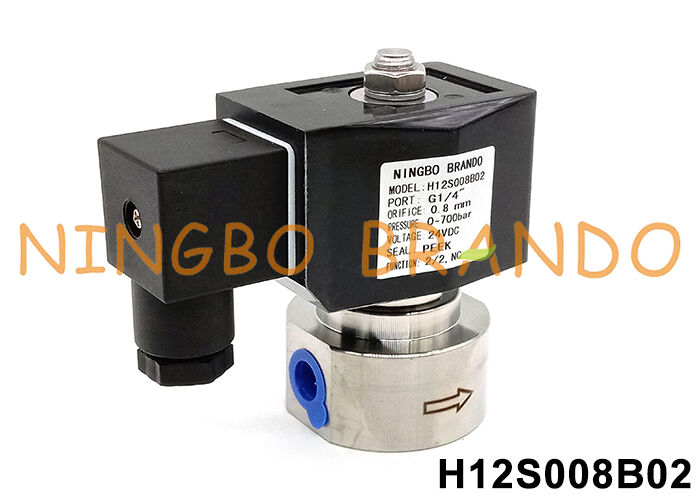

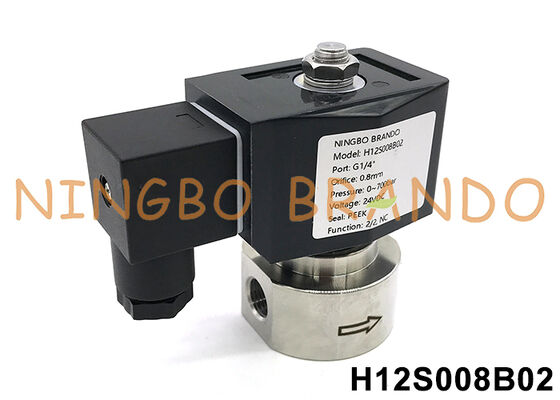

700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V

700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V

  • 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
  • 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
  • 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
  • 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
  • 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: H12S008B02
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: High Pressure Solenoid Valve Port Size: G1/4''
Orifice Size: 0.8mm Body Material: Stainless Steel
Seal Material: PEEK Working Medium: Water, Air, Gas, Liquid, Etc
Max Working Pressure: 700 Bar Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

700 bar High Pressure Solenoid Valve

,

10000 PSI High Pressure Solenoid Valve

,

70 MPa High Pressure Solenoid Valve

700 bar 10000 PSI High Pressure Solenoid Valve 1/4'' 220V 110V 24V 12V





Technical Data:

Model No
Port Size
Orifice Size
(mm)
Cv
Working Pressure
(bar)
Body
Seal
NC/NO
AC220V/
AC110V
AC24V/
DC24V
DC12V
H12S008B02
G1/4''
0.8
0.03
0 to 700
0 to 700
0 to 600
SS304
PEEK
2 Way NC
H12S010B02
1
0.04
0 to 500
0 to 450
0 to 400
H12S015B02
1.5
0.08
0 to 360
0 to 300
0 to 250
H12S020B02
2
0.15
0 to 200
0 to 160
0 to 120

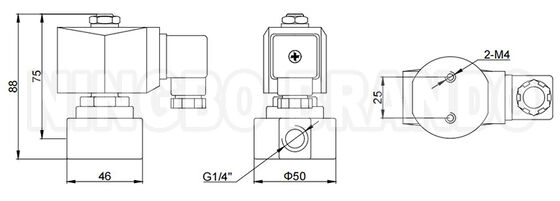

Main Dimension:

700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 0



Our Production:

700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 1



Similar Products:

700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 2 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 3 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 4 700 bar 10000 PSI High Pressure Solenoid Valve1/4'' 220V 110V 24V 12V 5
Max 300 bar Max 350 bar Max 360 bar Max 360 bar



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!

Tag:

Stainless Steel Electric Solenoid Valve,

Stainless Steel Solenoid Valve 24V,

Stainless Steel Water Solenoid Valve
