Name: 2S350-35 1-1/4 Inch Stainless Steel Normally Closed Water Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 2S350-35
Price: 26.00 USD
Availability: InStock

Home Products Stainless Steel Solenoid Valve

2S350-35 1-1/4 Inch Stainless Steel Normally Closed Water Solenoid Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	2S350-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Valve Series:	2S Series	Ref. Number:	UNI-D Type SUW-35
Voltage:	AC110V AV220V DC24V	Action:	Direct Lift Diaphragm
Port Size:	1'' Inch	Media:	Water Air Gas
Body Material:	Stainless Steel	Diaphragm Material:	NBR, FKM And EPDM
Pressure Range:	0 To 1 MPa	Orifice Size:	35mm
Highlight:	Uni-D SUW-35 , 2S350-35 Stainless Steel Valve , 2S350-35 SS304 Solenoid Valve

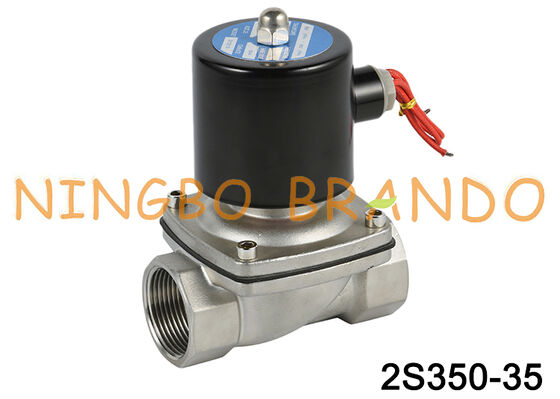

2S350-35 1-1/4 Inch Stainless Steel Normally Closed Water Solenoid Valve

2S : 2 Position 2 Way Solenoid Valve With Stainless Steel Body

350 : The Orifice Size is 35mm

35 : The Port Size is G1 1/4''

The 2S350-35 solenoid valve body is made of 304# stainless steel, widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.

Technical Data of 2W & 2S Solenoid Valve:

2W Series	2W025-08	2W040-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
2S Series	2S025-08	2S040-10	2S160-15	2S200-20	2S250-25	2S350-35	2S400-40	2S500-50
Orifice Size	2.5	4	15	20	25	35	40	50
Port Size	1/4''	3/8''	1/2''	3/4''	1''	1-1/4''	1-1/2''	2''
Medium	Water, Air, Gas, Oil
Action	Direct Acting		Semi-Direct Diaphragm Operated
Function	2 Way, Normally Closed
Fluid Viscosity	20 CST below
Pressure Range	0 to 1.0 Mpa
Temp. Range	-5 to +85℃

Main dimension of 2W & 2S Series Solenoid Valves:
2S350-35 1-1/4 Inch Stainless Steel Normally Closed Water Solenoid Valve 0

2S Series	2W Series	A	B	C	D	E
2S025-06	2W025-06	64.5	30	75	43	1/8''
2S025-08	2W025-08	64.5	30	75	43	1/4''
2S040-10	2W040-10	70.6	32	82.4	53	3/8''
2S160-10	2W160-10	101.5	57	117	69	3/8''
2S160-15	2W160-15	101.5	57	117	69	1/2''
2S200-20	2W200-20	107	57	123.5	73	3/4''
2S250-25	2W250-25	111.5	73.5	134.5	99	1''
2S350-35	2W350-35	142	95	172	123	1-1/4''
2S400-40	2W400-40	142	95	172	123	1-1/2''
2S500-50	2W500-50	172	123	209	168	2''

Deconstruction diagram of Stainless steel body electric water valves:

2S350-35 1-1/4 Inch Stainless Steel Normally Closed Water Solenoid Valve 1

Brando Factory Production of Solenoid Valves:

More Stainless Steel Solenoid Valves for you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
