Name: 100 bar 1'' Flange Stainless Steel High Pressure Solenoid Valve 24V 220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: H10S25BF25
Price: 26.00 USD
Availability: InStock

Home Products Stainless Steel Solenoid Valve

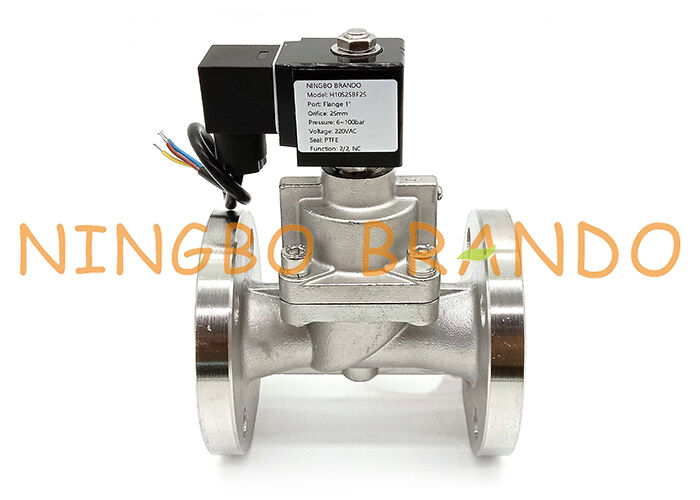

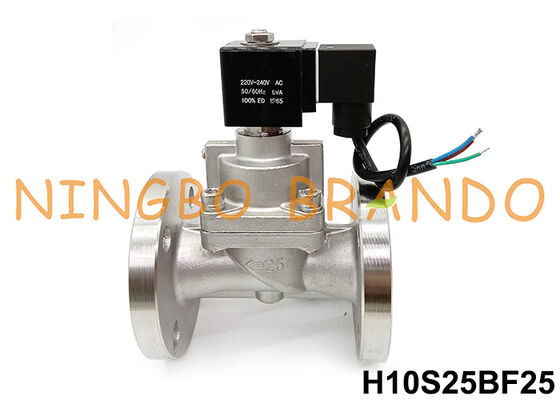

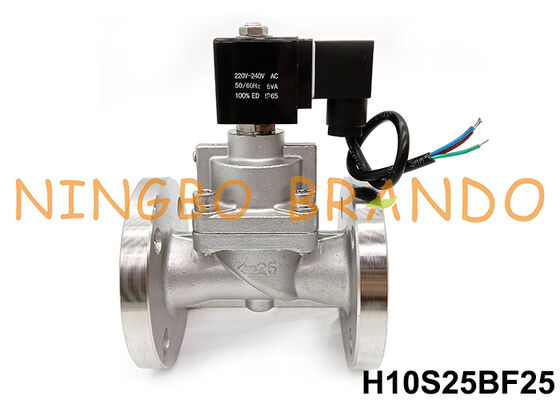

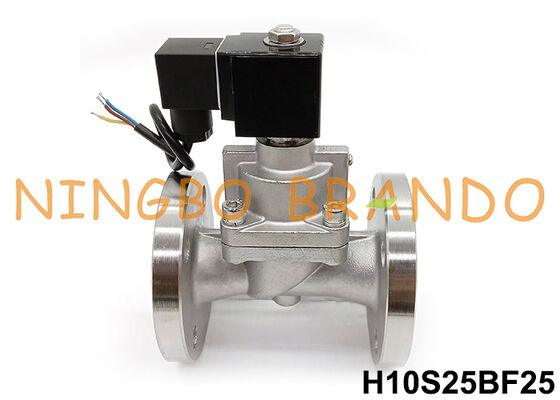

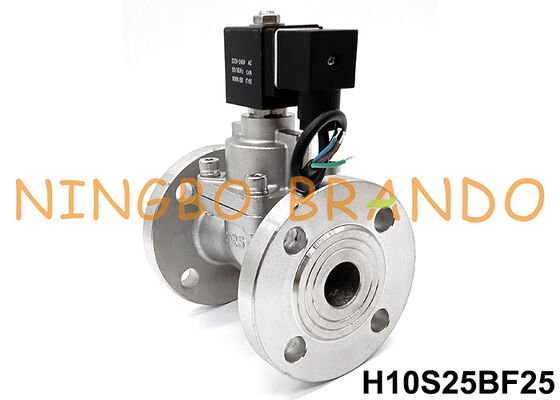

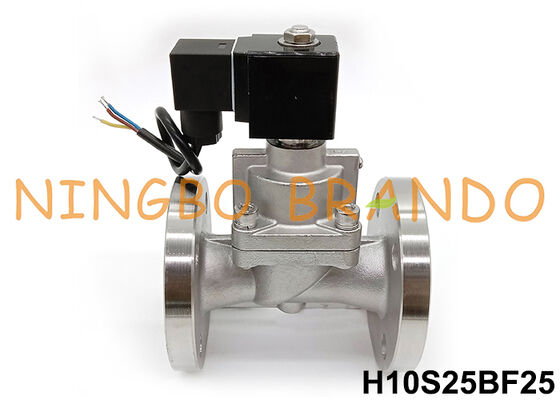

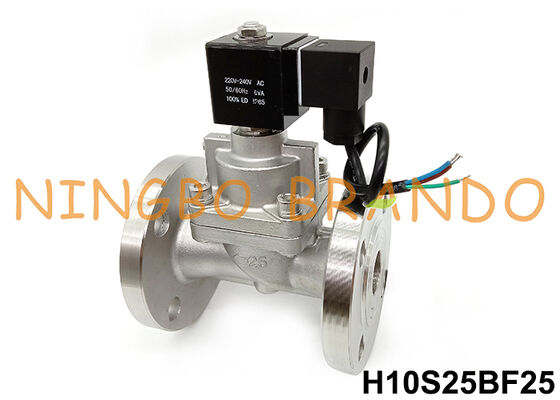

100 bar 1'' Flange Stainless Steel High Pressure Solenoid Valve 24V 220V

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	H10S25BF25

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$3 to $50 per pc
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Working Medium:	Air, Gas, Liquid, Water	Pipe Connection:	Flanged
Port Size:	1''	Orifice Size:	25mm
Operation Mode:	2 Way, Normally Closed	Operation:	Pilot Piston Operated
Body Material:	Stainless Steel	Seal Material:	PTFE
Pressure Range:	6 To 100 Bar	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:	100 bar High Pressure Solenoid Valve , 1'' Flange High Pressure Solenoid Valve , 100 bar Electromagnetic Valve

100bar Water Air Stainless Steel High Pressure Solenoid Valve 24V 220V

Product Features of high pressure solenoid valve:

Working medium:water,liquid,air,light oil(viscosity≤20cst)
Matierial: Stainless steel SS304
Working Temperature:-5 ~ 80ºC
Temperature must be≤80ºC
Working Presure:6-100bar
Voltage: AC220~240V AC110V 50/60Hz 28VA DC24 20W I P65
Seals: PTFE

Technical Data of High Pressure Solenoid Valve:

Model No.		Orifice Size (mm)	Port Size	Cv	Working Pressure (bar)
Model No.					Normally Closed		Normally Open
Normally Close	Normally Open				AC220V	DC24V	AC220V DC24V
H10S15B04	H10S15K04	15	1/2''	4.8	6~100	6~100	6~40
H10S20B06	H10S20K06	20	3/4''	7.6	6~100	6~100	6~40
H10S25B25	H10S25K25	25	1''	12	6~100	6~100	6~40
H10S32B32	H10S32K32	32	1-1/4''	20	6~80	6~80	6~30
H10S40B40	H10S40K40	40	1-1/2''	30	6~80	6~80	6~30
H10S50B50	H10S50K50	50	2''	48	6~80	6~80	6~30
H10S15BF15	H10S15KF15	15	F1/2''	4.8	6~100	6~100	6~40
H10S20BF20	H10S20KF20	20	F3/4''	7.6	6~100	6~100	6~40
H10S25BF25	H10S25KF25	25	F1''	12	6~100	6~100	6~40
H10S32BF32	H10S32KF32	32	F1-1/4''	20	6~80	6~80	6~30
H10S40BF40	H10S40KF40	40	F1-1/2''	30	6~80	6~80	6~30
H10S50BF50	H10S50KF50	50	F2''	48	6~80	6~80	6~30

Dimension of High Pressure Solenoid Valve:

100 bar 1'' Flange Stainless Steel High Pressure Solenoid Valve 24V 220V 0

Brando Solenoid Valve Factory Production Video:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves

MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar

MAX 50 bar	MAX 70 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves

MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar

MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
