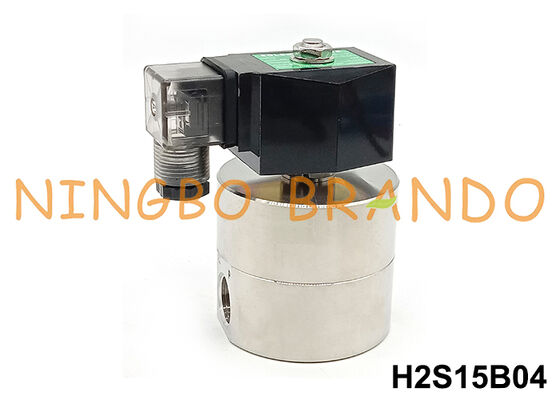

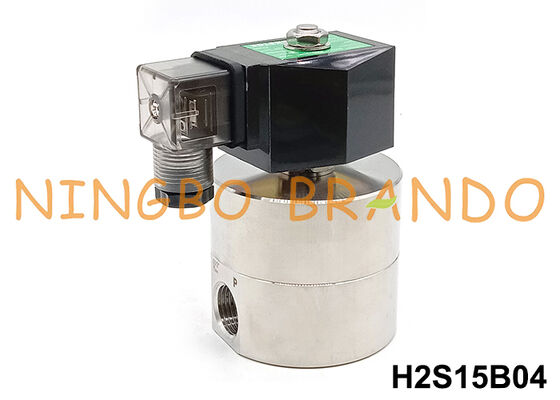

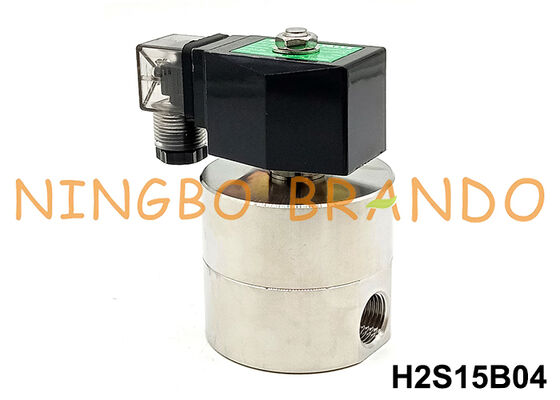

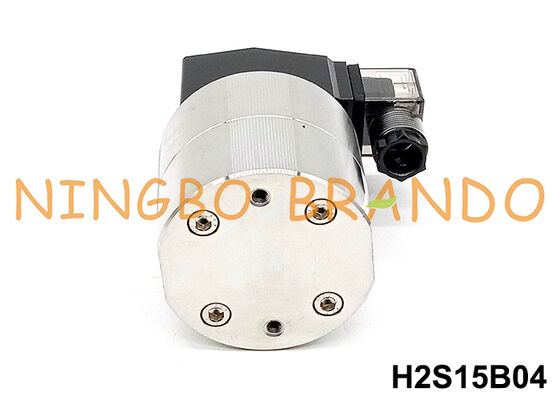

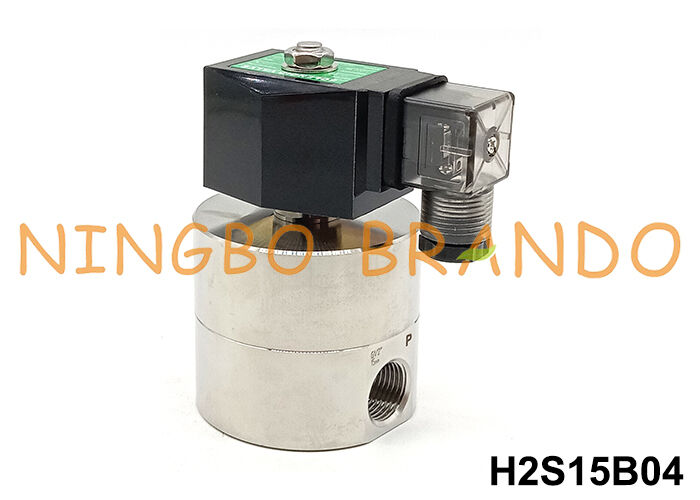

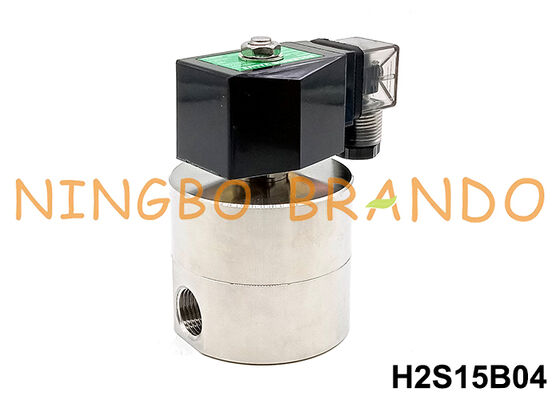

1/2'' 200 bar High Pressure Stainless Steel Solenoid Valve 24V 110V 220V

1/2'' 200 bar High Pressure Stainless Steel Solenoid Valve 24V 110V 220V

Product Features:

1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Max Working Pressure: 200 bar (See the parameter table below for details)
3. Seal Material: PTFE
4. Body Material: Stainless Steel 304
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2''
6. Orifice Size: 1.2mm, 2mm, 6mm, 10mm, 15mm
7. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting (1.2mm, 2mm orifice size), Piston Pilot Operated (6mm, 10mm, 15mm orifice size)

Technical Data:

Main Dimension:

1/8'', 1/4'' (200 bar)	1/4'', 3/8'' (100 bar)
3/8'', 1/2'' (100 bar)	1/2'' (200 bar)

Production Video:

More High Pressure Solenoid Valves:

Brass Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar
MAX 50 bar	MAX 90 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar
MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar
