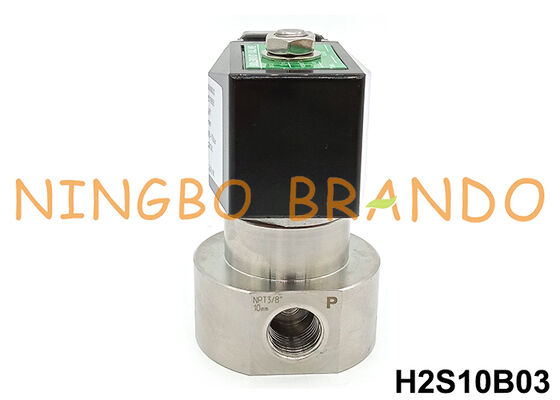

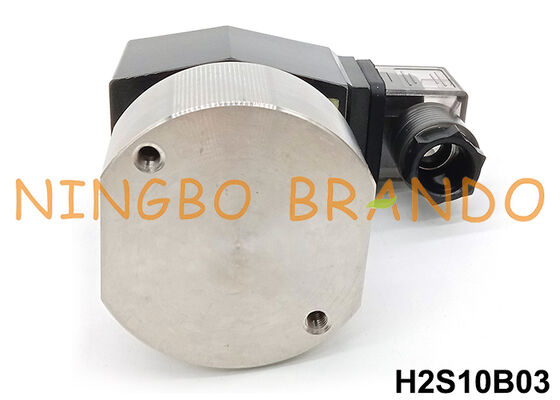

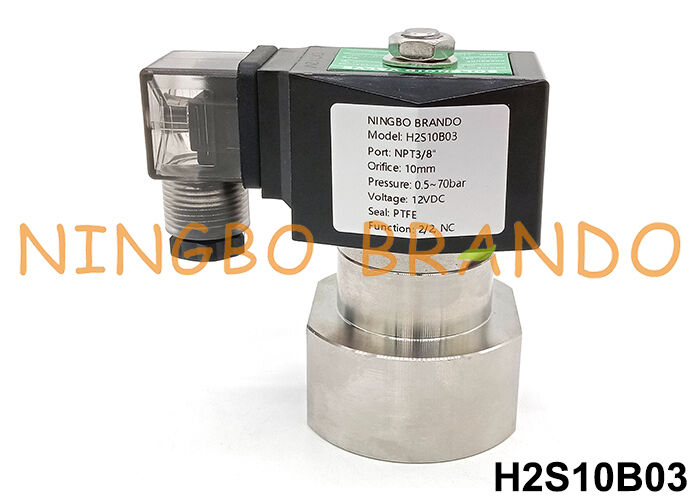

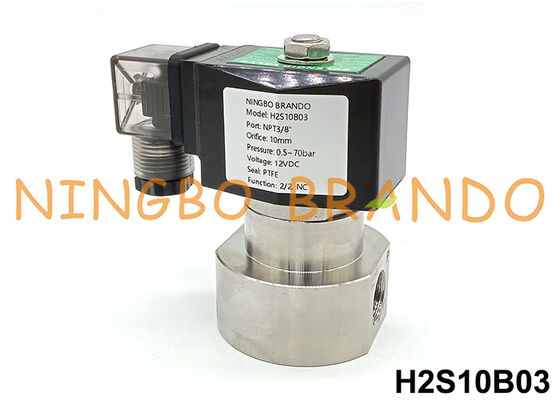

3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC

3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC

  • 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
  • 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
  • 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
  • 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
  • 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC
Product Details:
Place of Origin: China, Ningbo
Brand Name: BRANDO
Certification: CE, ISO
Model Number: H2S10B03
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: High Pressure Solenoid Valve Port Size: 3/8''
Pipe Connection: Female Threaded Thread Type: G, NPT
Orifice Size: 10mm Body Material: Stainless Steel 304
Seal Material: PTFE Working Medium: Water, Air, Gas, Liquid, Etc
Max Working Pressure: 100 Bar Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Highlight:

3/8'' Stainless Steel Solenoid Valve

,

High Pressure Stainless Steel Solenoid Valve

,

2 Way High Pressure Solenoid Valve

3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC​





Technical Data:

Model No
Port Size
(inch)
Orifice Size
(mm)
CV
Min Working Pressure
(bar)
Max Working Pressure
(bar)
Coil
AC
DC
HS2
1/8'', 1/4''
1.2
0.05
0
200
200
BB16039502
1/8'', 1/4''
2
0.15
100
100
BB16039502
1/4''
6
0.8
0.5
100
70
BB16039001
3/8''
6
0.8
100
70
BB16039001
3/8'', 1/2''
10
1.8
100
70
BB16039502
1/2''
15
4.6
200
200
BB16039502



Main Dimension:

3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 0 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 1
1/8'', 1/4'' (200 bar) 1/4'', 3/8'' (100 bar)
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 2 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 3
3/8'', 1/2'' (100 bar) 1/2'' (200 bar)



Production Video:



More High Pressure Solenoid Valves:



Brass Solenoid Valves
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 4 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 5 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 6 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 7
MAX 50 bar MAX 50 bar MAX 50 bar MAX 50 bar
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 8 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 9 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 10 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 11
MAX 50 bar MAX 90 bar MAX 120 bar MAX 200 bar



Stainless Steel Solenoid Valves
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 12 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 13 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 14 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 15
MAX 50 bar MAX 50 bar MAX 50 bar MAX 100 bar
3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 16 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 17 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 18 3/8'' High Pressure Stainless Steel Solenoid Valve 100 Bar 220VAC 70 Bar 24VDC 19
MAX 120 bar MAX 160 bar MAX 200 bar MAX 300 bar
