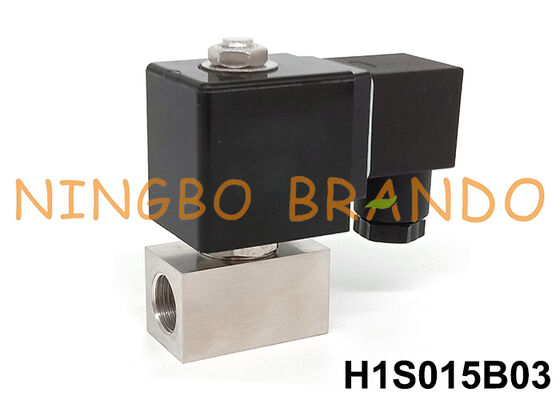

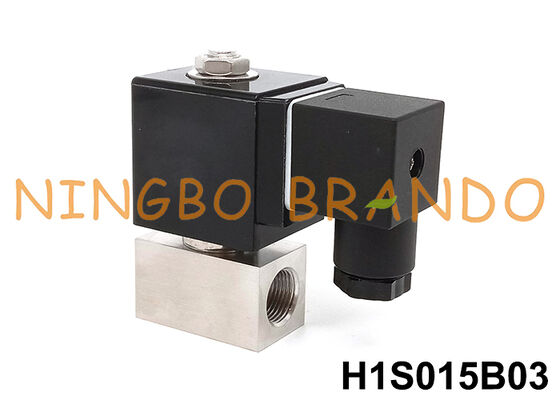

Name: 250 bar 3/8'' High Pressure Solenoid Valve with Stainless Steel Body 220VAC 110VAC
Brand: Ningbo Brando Hardware Co., Ltd
SKU: H1S015B03
Price: 26.00 USD
Availability: InStock

Home Products Stainless Steel Solenoid Valve

250 bar 3/8'' High Pressure Solenoid Valve with Stainless Steel Body 220VAC 110VAC

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	H1S015B03

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	High Pressure Solenoid Valve	Working Fluids:	Water, Air, Gas, Liquid, Etc
Port Size (inch):	3/8''	Orifice Size:	1.5mm
Coil Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)	Max Working Pressure:	250 Bar
Body Material:	Stainless Steel	Seal Material:	PTFE
Highlight:	250 bar High Pressure Solenoid Valve , 3/8'' High Pressure Solenoid Valve , 25MPa High Pressure Valve

250 bar 3/8'' High Pressure Solenoid Valve with Stainless Steel Body 220VAC 110VAC

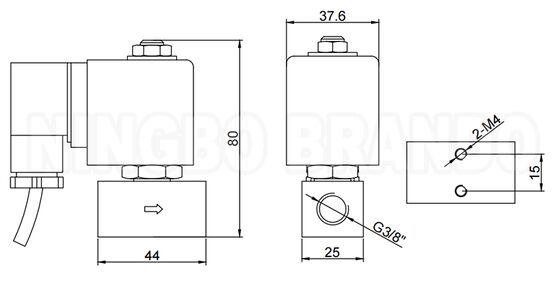

Main Dimension:

250 bar 3/8'' High Pressure Solenoid Valve with Stainless Steel Body 220VAC 110VAC 0

Ordering Code:

250 bar 3/8'' High Pressure Solenoid Valve with Stainless Steel Body 220VAC 110VAC 1

Technical Data:

Model No	Orifice Size (mm)	Port Size (inch)	CV	Working Pressure Range (bar)			Dimension
				Normally Closed		Normally Open	Normally Closed
				220VAC	24VDC	Normally Open	AxBxC (mm)
H1S010BXX	1	1/4'', 3/8''	0.04	0-300	0-150	0-150	44x25x80
H1S015BXX	1.2		0.08	0-250	0-120	0-60
H1S020BXX	2		0.15	0-180	0-70	0-35
H1S025BXX	2.5		0.20	0-110	0-45	0-20
H1S030BXX	3		0.25	0-80	0-40	0-15
H1S040BXX	4		0.6	0-40	0-15	0-5
H1S050BXX	5		0.9	0-25	0-8	/
H1S10B03	10	3/8''	3.5	6-160	6-120	6-50	60x55x109
H1S15B04	15	1/2''	4.7				70x65x119
H1S20B06	20	3/4''	7.0				80x74x124
H1S25B25	25	1''	11.0				90x87x134
