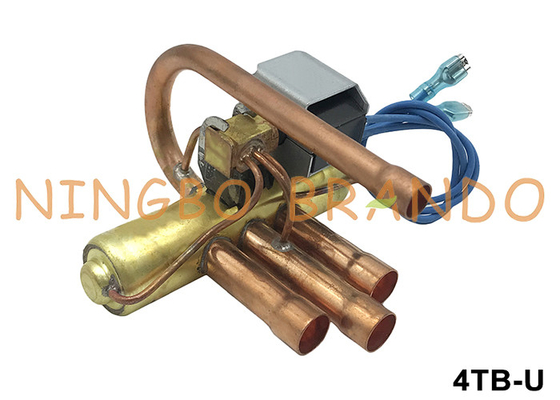

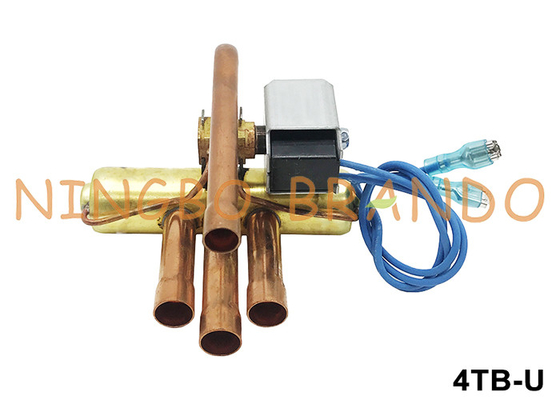

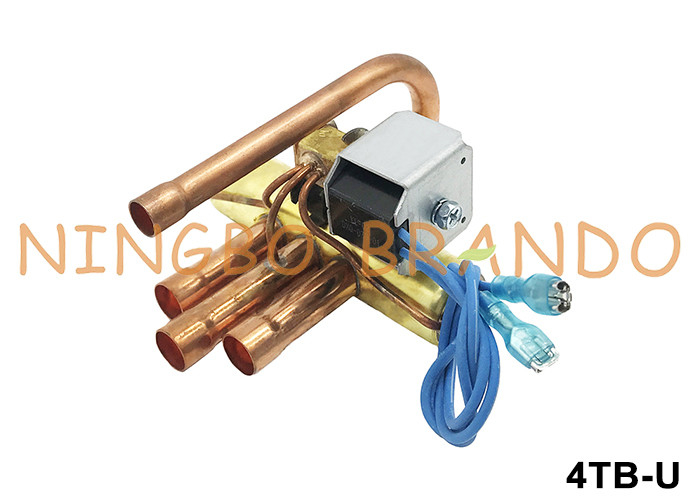

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

  • 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
  • 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
  • 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: 4TB-4U
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 20 to 30 working days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: 4 Way Reversing Valve D Port Size: 8.1mm (5/16'')
E.S.C Port Size: 9.6mm (3/8'') Power: 0.75 To 1.5HP
Applicable Refrigerant: R22, R407C, R410A, Etc Application: Heat Pump, Air Conditioning, Etc
Voltage: 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

4 Way Reversing Valve

,

Air Conditioning Reversing Valve

,

Refrigeration Four Way Reversing Valve

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V



The 4 way reversing valves are used in reversible applications such as heat pumps or reversible air conditioning units and chillers. The 4 way reversing valve allows an inversion of the refrigeration cycle, changing from cooling mode in Summer to heating mode in Winter.



Technical Data:

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 0
Model No
Orifice Size
(mm)
Port Size
(mm)
Operating Pressure Difference (MPa)
Internal Leakage (ml/min)
P=1MPa at 70℃
Power
(HP)
D
E.S.C
Min
Max
4TB-4U
8
8.1
9.6
0.25
2.5
＜1000
0.75 to 1.5
4TB-9U
11
9.6
12.8
0.34
2.25
＜1500
2 to 3
4TB-11
11.5
12.8
16
0.34
2.25
＜2000
2.5 to 4
4TB-11U
11.5
9.6
16
0.34
2.25
＜2000
2.5 to 4
4TB-20
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-20U
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-34
20
19.05
22.2
0.34
2.25
＜6000
7.5 to 12
4TB-45
23
22.2
28.5
0.34
2.76
＜6000
5 to 15
25.6
28.5
34.9
0.34
2.76
＜6000
5 to 20



Working Principle:

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 1



Structure:

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 2



Our Production:
4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 3


Related Products

4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 4 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 5 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 6 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 7
Solenoid Valve Expansion Valve Hot Gas Bypass Valve Pressure Regulator
4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 8 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 9 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 10 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 11
Ball Valve Check Valve Sight Glass Access Valve



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
