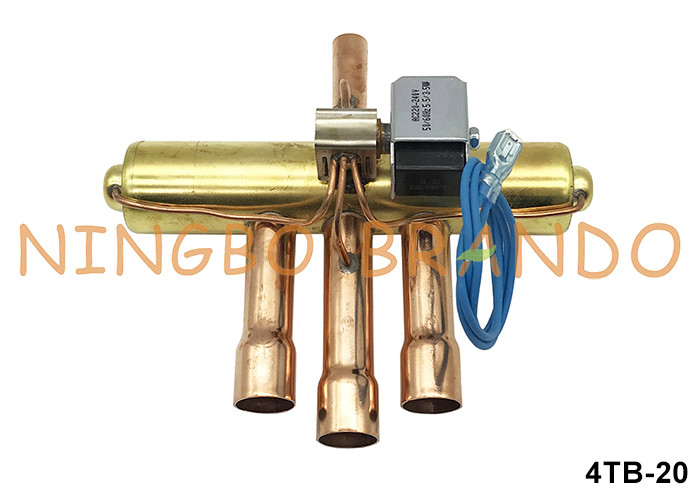

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V

  • Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V
Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: 4TB-20
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 20 to 30 working days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: 4 Way Reversing Valve D Port Size: 12.8mm (1/2'')
E.S.C Port Size: 19.2mm (3/4'') Power: 4 To 8HP
Applicable Refrigerant: R22, R407C, R410A, Etc Application: Heat Pump, Air Conditioning, Etc
Voltage: 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

Four-Way Reversing Valve

,

4-Way Reversing Valve

,

4 Way Reversing Valve For Air Conditioner

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V



4 way reversing valves are especially applicable for heat pump systems including high-end and high efficient unitary and room air conditioners to realize switching between cooling mode and heating mode by changing the flow path of refrigerant.


Technical Data:

Dimension - logo
Model No
Orifice Size
(mm)
Port Size
(mm)
Operating Pressure Difference (MPa)
Internal Leakage (ml/min)
P=1MPa at 70℃
Power
(HP)
D
E.S.C
Min
Max
4TB-4U
8
8.1
9.6
0.25
2.5
＜1000
0.75 to 1.5
4TB-9U
11
9.6
12.8
0.34
2.25
＜1500
2 to 3
4TB-11
11.5
12.8
16
0.34
2.25
＜2000
2.5 to 4
4TB-11U
11.5
9.6
16
0.34
2.25
＜2000
2.5 to 4
4TB-20
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-20U
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-34
20
19.05
22.2
0.34
2.25
＜6000
7.5 to 12
4TB-45
23
22.2
28.5
0.34
2.76
＜6000
5 to 15
25.6
28.5
34.9
0.34
2.76
＜6000
5 to 20



Working Principle:

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 1



Structure:

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 2



Our Production:
Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 3
