| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | TD 1 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs per month |
| Product Name: | Thermostatic Expansion Valve | Refrigerant: | R134a, R22, R407C, R404A, Etc |
|---|---|---|---|
| Inlet Size: | 1/4'', 3/8'' | Outlet Size: | 3/8'', 1/2'' |
| Connection: | Solder | Flow Direction: | Angle |
| Pressure Equalization: | Internally Equalized | Orifice No: | 0, 1, 2, 3, 4, 5 |
| Highlight: | Danfoss Expansion Valve TD 1,Danfoss Type Thermostatic Expansion Valve,R134A Danfoss Thermal Expansion Valve |
||

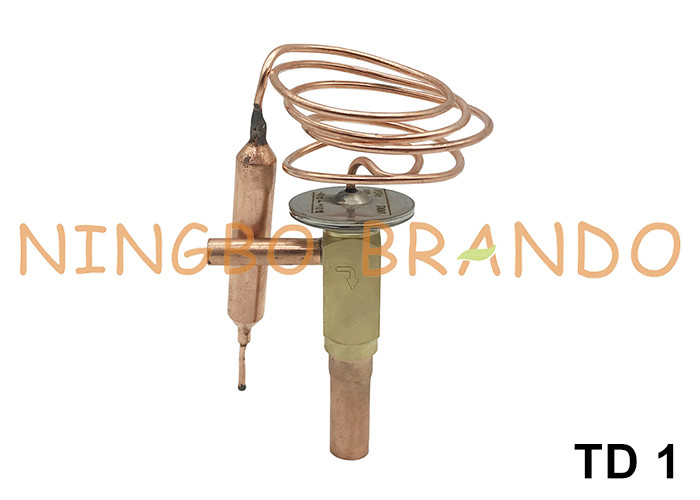

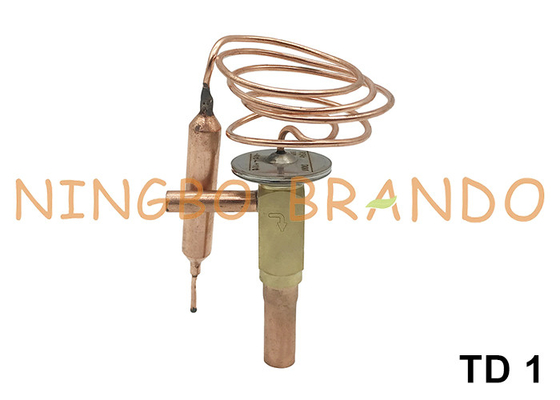

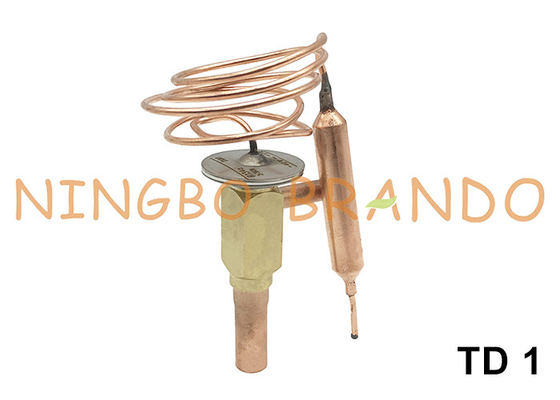

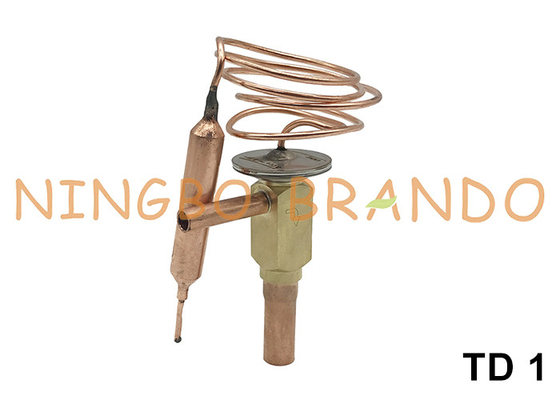

TD 1 Angle Port Danfoss Type Thermostatic Expansion Valve R134a R22 R407C R404A
TD 1 is a thermostatic expansion valve designed to regulate refrigerant injection into evaporators. The injection depends on the refrigerant superheat at the evaporator outlet, where the bulb must be placed. TD 1 is constructed for hermetic sealed systems and supplied as angleway and straightway version.
Application Examples:
1. GDM (Glass Door Merchandiser)
2. Commercial fridge and freezer
3. Heat Pump
Technical Data:
|
Type
|
Flow Direction
|
Port (ODF)
Inlet x Outlet
|
Equalization
|
Refrigerant
|
Orifice No
|
|
TD 1
|
Angle
Straight
|
1/4'' x 3/8''
(6mm x 10mm)
|
Internal
|
R134a
R22
R404a
R407C
|
0
1
2
3
4
5
|
|
3/8'' x 1/2''
(10mm x 12mm)
|
Rated Capacity:
|
Orifice no
|
Rated capacity in tons (TR)
|
Rated capacity in kW
|
||||||
|
R134a
|
R22
|
R404a
|
R407C
|
R134a
|
R22
|
R404a
|
R407C
|
|
|
0
|
0.13
|
0.23
|
0.24
|
0.26
|
0.46
|
0.82
|
0.83
|
0.9
|
|
1
|
0.2
|
0.34
|
0.32
|
0.37
|
0.7
|
1.19
|
1.13
|
1.31
|
|
2
|
0.34
|
0.54
|
0.51
|
0.59
|
1.19
|
1.89
|
1.78
|
2.09
|
|
3
|
0.57
|
0.84
|
0.67
|
0.92
|
2.01
|
2.95
|
2.37
|
3.24
|
|
4
|
0.8
|
1.16
|
0.95
|
1.28
|
2.83
|
4.10
|
3.36
|
4.51
|
|
5
|
1.08
|
1.83
|
1.635
|
2.01
|
3.81
|
6.43
|
5.79
|
7.08
|
Main Dimension:
Our Production:
