| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 8BA |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'' | Orifice Size: | 15mm, 20mm, 25mm |
|---|---|---|---|
| Operation Mode: | 2 Way Normally Closed | Operation: | Piston Pilot Operated |
| Body Material: | Stainless Steel | Working Medium: | Air, Water, Etc |
| Seal Material: | FKM, PTFE | Pressure Range: | 0.2 To 12 MPa |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| High Light: | High Pressure Stainless Steel Solenoid Valve,Pilot Piston Stainless Steel Solenoid Valve,High Pressure Solenoid Valve |
||

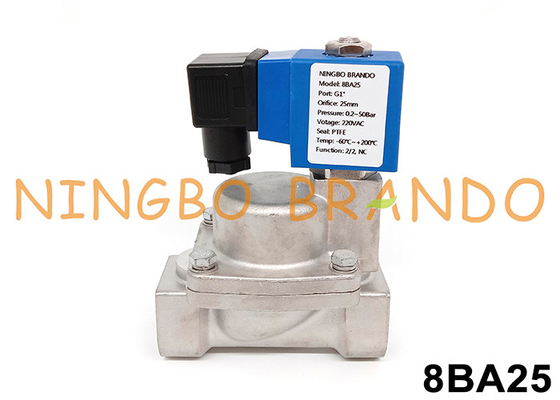

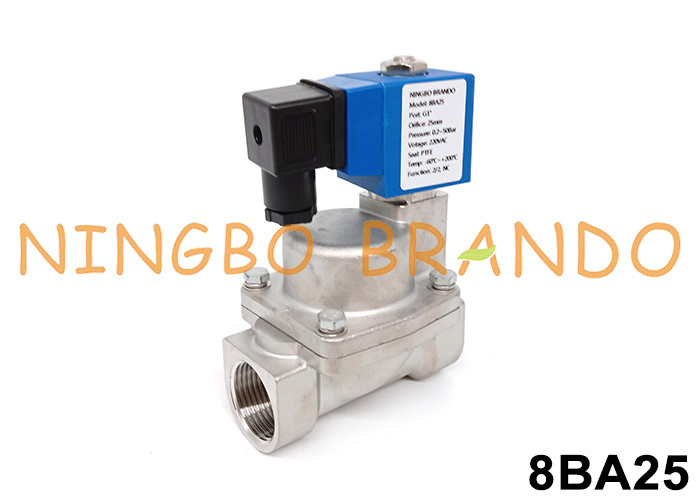

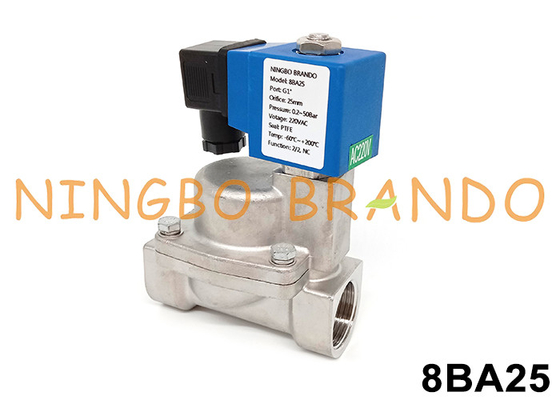

1'' High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston
Product Features of Stainless Steel Solenoid Valve:
1. Working Medium: Compressed Air, Water, etc
2. Working Pressure Range: 0.2 to 12 MPa (See the parameter table below for details)
3. Seal Material: FKM
4. Body Material: Brass, Stainless Steel
5. Port Size: 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 15mm, 20mm, 25mm
7. Operation: Piston Pilot Operated
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of Stainless Steel Solenoid Valve:
Main Dimension of Stainless Steel Solenoid Valve:
Brando Factory Production Video of Solenoid Valves:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
|
|
|
|
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
|
|
|
|
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
