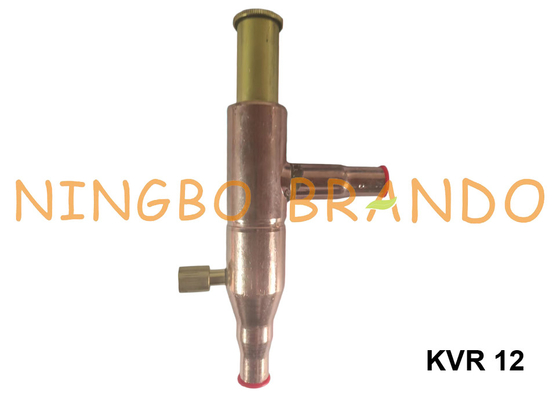

Name: KVR 12 Danfoss Type Condensing Pressure Regulator 1/2'' 034L0093 034L0096
Brand: Ningbo Brando Hardware Co., Ltd
SKU: KVR 12
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

KVR 12 Danfoss Type Condensing Pressure Regulator 1/2'' 034L0093 034L0096

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	KVR 12

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Condensing Pressure Regulator	Refrigerant:	HCFC, HFC, HC
Port Size:	1/2''	Connection:	Solder (ODF)
Adjustment Range:	5 To 17.5 Bar, Factory Setting = 10 Bar	Max Working Pressure:	28 Bar
Medium Temperature Range:	-45 To +130℃	Code No:	034L0093, 034L0096
Highlight:	Condensing Pressure Regulator , Danfoss KVR 12 034L0096 , Danfoss KVR 12 034L0093

KVR 12 Danfoss Type Condensing Pressure Regulator 1/2'' 034L0093 034L0096

Condensing pressure regulator is used to prevent the condensing temperature in a refrigeration system from dropping too low in a refrigeration system, especially during cold weather. They can be fitted in the hot-gas line downstream of the T-fitting branch to the receiver pressure regulator or in the condensate line.

Technical Data:

Refrigerants	HCFC, HFC and HC: KVR 12-22
	HCFC and non-flammable HFC: KVR 28-35
Adjustment range	5 – 17.5 bar
	Factory setting = 10 bar
Maximum working pressure	KVR: PS/MWP = 28 bar
	NRD: PS/MWP = 46 bar
Maximum test pressure	KVR: Pe = 31 bar
	NRD: Pe = 60 bar
Medium temperature range	-45 – 130 °C
P-band	KVR 12 – 22 = 6.2 bar
	KVR 28 – 35 = 5 bar
Opening differential pressure for NRD	Start opening: Δp = 1.4 bar
	Fully open: Δp = 3 bar

Ordering Code:

Model	Rated liquid capacity (Evaporator capacity) (kW)				Rated hot gas (Evaporator capacity) (kW)				Flare Connection		Code No	Solder Connection		Code No
Model	R22	R134a	R404A/R507	R407C	R22	R134a	R404A/R507	R407C	inch	mm	Code No	inch	mm	Code No
KVR 12	50.4	47.3	36.6	54.4	13.2	11.6	12	14.3	1/2''	12	034L0091	1/2''	12	034L0093 034L0096
KVR 15	50.4	47.3	36.6	54.4	13.2	11.6	12	14.3	5/8''	16	034L0092	5/8''	16	034L0097
KVR 22	50.4	47.3	36.6	54.4	13.2	11.6	12	14.3	/	/		7/8''	22	034L0094
KVR 28	129	121	93.7	139.3	34.9	30.6	34.9	37.7	/	/		1 1/8''	28	034L0095 034L0099
KVR 35	129	121	93.7	139.3	34.9	30.6	34.9	37.7	/	/		1 3/8''	35	034L0100

Dimension:

Model	Flare Connection		Solder Connection		NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
Model	inch	mm	inch	mm	NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
KVR 12	1/2''	12	1/2''	12	19	19	179	99	66	64	41	10	30
KVR 15	5/8''	16	5/8''	16	24	24	179	99	66	64	41	12	30
KVR 22	/	/	7/8''	22	/	/	179	99	66	64	41	17	30
KVR 28	/	/	1 1/8''	28	/	/	259	151	103	105	48	20	43
KVR 35	/	/	1 3/8''	35	/	/	259	151	103	105	48	25	43
