| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DMF-YB-76S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000 pcs per month |
| Product Name: | Pulse Valve | Valve Design: | Submerged |
|---|---|---|---|
| Port Size: | 3'' | Diaphragm Material: | NBR, FKM |
| Voltage: | 24VDC, 110VAC, 220VAC | Working Pressure Range: | 0.1 To 0.8 MPa |
| High Light: | Submerged Pulse Valve,Dust Collector Solenoid Valve,BFEC DMF-YB-76S |
||

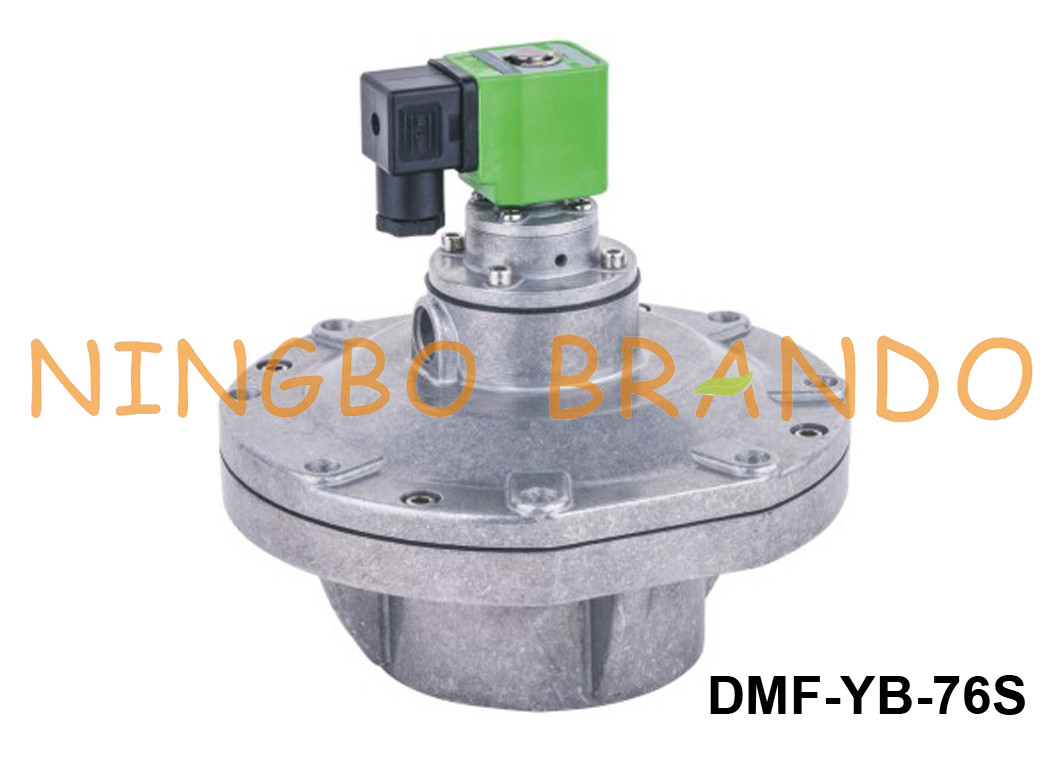

BFEC DMF-YB-76S Submerged Pulse Jet Solenoid Valve For Dust Collector
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Ordering Code of Y Series Embedded Pulse Valve:
Dimension of DMF-YB-76S Pulse Valve:
Technical Data of Y Series Embedded Pulse Valve:
|
Integral Pilot
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
DMF-YA-76S
|
DMF-Y-102SA
|
|||||
|
DMF-YB-76S
|
DMF-Y-102SE
|
|||||
|
Remote Pilot
|
MF-Y-25
|
MF-Y-40S
|
MF-Y-50S
|
MF-Y-62S
|
MF-Y-76S
|
MF-Y-102S
|
|
MF-YA-76S
|
MF-Y-102SA
|
|||||
|
MF-YB-76S
|
MF-Y-102SE
|
|||||
|
Diameter
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
4''
|
|
Diaphragm Number
|
1
|
2
|
||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Pressure Range
|
0.1 to 0.8 MPa
|
|||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |

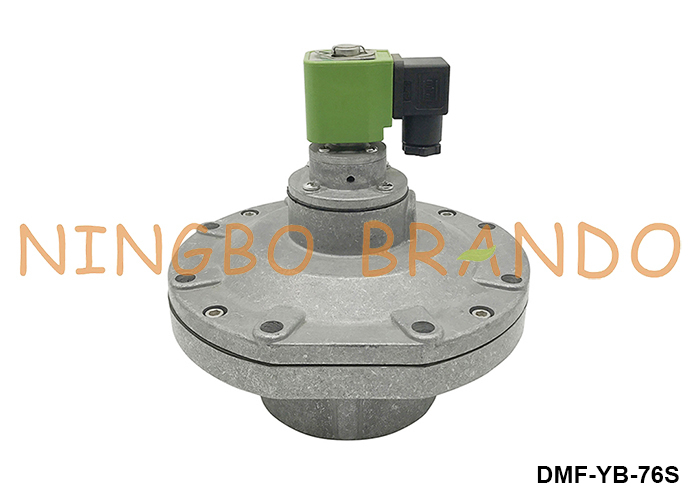

Production Picture of Pulse Valve:
