| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DIN43650B-CB |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Connector | Type: | DIN43650B |
|---|---|---|---|
| Contact Distance: | 11mm | Pole Number: | 2P+E |
| Protection Class: | IP67 | Working Voltage: | AC, DC |
| Cable Length: | 1 Meter (can Be Customized) | Led Indicator: | With |
| High Light: | DIN43650B Connector,Molded Cable Solenoid Coil Connector,Waterproof Solenoid Coil Connector |
||

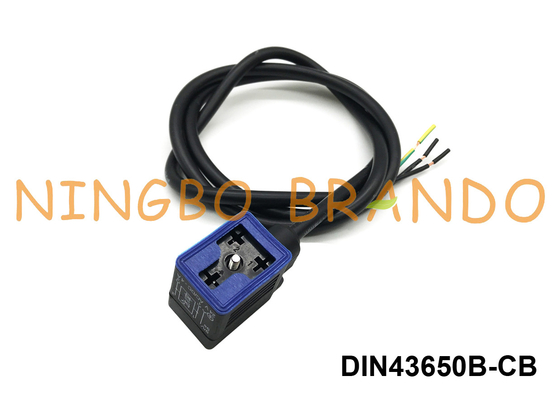

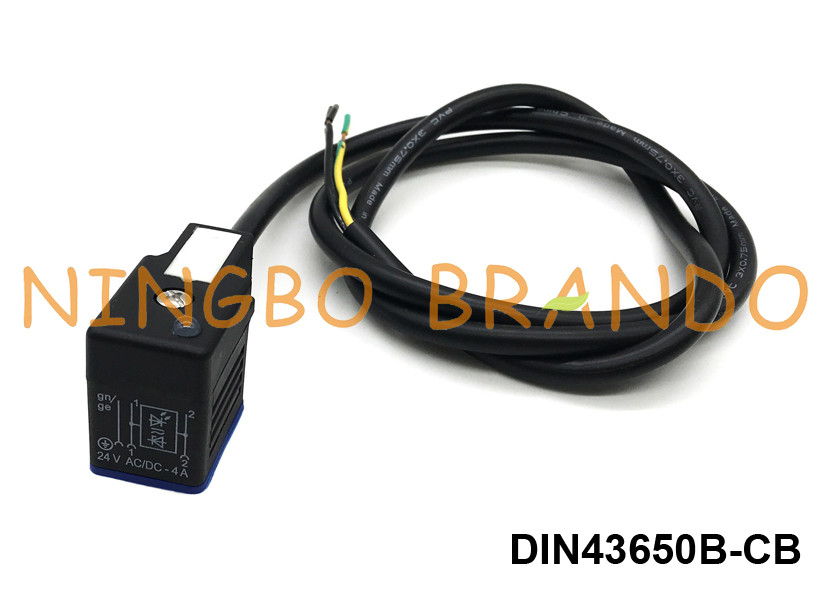

DIN43650B IP67 Waterproof Molded Cable Solenoid Coil Connector With LED
BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
| DIN Type | DIN43650B |
| Contact Distance | 11mm |
| Number of Poles | 2 Poles + Ground |
| Nomical Current | 10A |
| Contact Resistance | ≤5mΩ |
| Fixing Screw | M3x30mm |
| Max Conductor Size | 3x1.5mm² |
| Protection Class | IP67 |
| Working Voltage |
AC, DC |
| Cable Length | 1 meter (can be customized) |
Main Dimension:
More DIN 43650 Connectors:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
