| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2S040-10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3 to $ 10 per set |
| Packaging Details: | Boxes, Carotn, Pallet |
| Delivery Time: | About one week |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 250000 sets per month |
| Product Name: | 2S040-10 Stainless Steel Solenoid Valve | Port Size: | G3/8'' Inch |
|---|---|---|---|
| Voltages: | DC12V, DC24V, AC24V, AC110V, AC220V | Pipe Connection: | Female Threaded |
| Function: | 2/2 Way Normally Closed | Operation: | Direct Acting |
| Electrical Connection: | Flying Leads | Body Material: | Stainless Steel 304 |
| Sealing Material: | NBR/Nitrile (Common), VITON (Available) | Pressure Range: | 0 ~ 1.0 Mpa |
| Temperature Range: | -5 ~ +100°C | ||
| Highlight: | 2S040-10 Stainless Steel Solenoid Valve,3/8'' Stainless Steel Solenoid Valve,UNI-D Type SUS-10 |
||

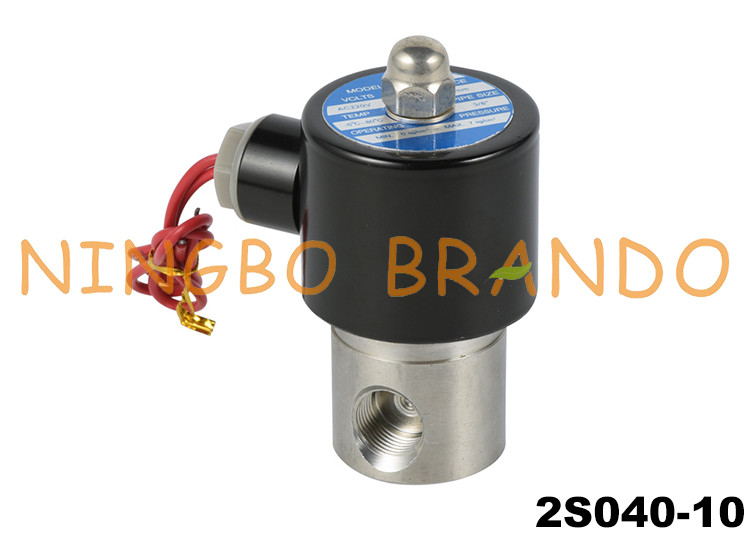

2S040-10 3/8'' 2/2 Way NC Stainless Steel Solenoid Valve 220VAC
3/8'' 2S040-10 direct acting normally closed stainless steel solenoid valves are automated basic components for controlling water, air, steam, and gas. This solenoid valve is a small-diameter water valve. The inside of the solenoid valve is made of a plunger. The plunger controls the circulation and cutting of the medium. It is suitable for small water treatment equipment or water control position of household appliances. In the case of poor water quality, it is recommended to use a stainless steel valve body solenoid valve that is corrosion resistant and will not be damaged. It can be used in many fields. Welcome your purchase. The following is a detailed introduction and corresponding parameters for your reference.
Youtube video of 3/8'' 2S040-10 2/2 Way NC Stainless Steel Solenoid Valve:
Main dimension of 2S040-10 3/8 Inch Normally Closed Electromagnetic Valve:
Technical parameterd of 2S Series Stainless Steel 304 Electric Solenoid Valve:
| Model | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Working medium | Air, Water, Steam, Gas | ||||||||
| Body material | Stainless steel 304 | ||||||||
| Seal material | NBR/Nitrile (Common), VITON (Available) | ||||||||
| Operation | Direct acting | ||||||||
| Port size | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Operating pressure | 0 to 1.0mpa | ||||||||
| Operating temperature | -5 to 100℃ | ||||||||
| Fluid viscosity | Below 20cst | ||||||||

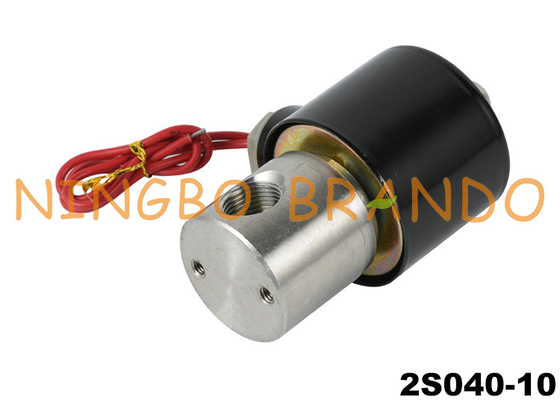

Details display of 2S040-10 Fluid Control Solenoid Valve For Air, Gas, Water, Steam:
Application display of Stainless Steel Body Solenoid Valve In Water Treatment Equipment:
Product features:
★HIGH QUALITY:
The electric solenoid valve is made of high quality 304 stainless steel material, with long serving life.
★GOOD FEATURE:
It has a good feature in durable, practical, stable, and moisture-proof and anti-corrosion.
★Note:
Its working temperature range is about -5℃-85℃, and the max pressure is 10kgf/cm ²
★APPLICATION:
This electric solenoid valve is N/C normally closed type, suitable for water, air, oil, gas transfer, automatic cleaning of electrical equipment, solar water heater, garden spray irrigation, infrared sensor cleaning device and so on.
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃). If energized continuously for more than 8 hours the coil may burn.
