| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BAPC209029003 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Solenoid Valve Armature | Plunger Tube Material: | Brass |
|---|---|---|---|
| Seal Material: | NBR, EPDM, Viton | Function: | 2 Way Normally Closed |
| Connection Type: | Flange With O-ring Groove | Voltage: | AC, DC All Available |
| High Light: | Solenoid Valve Armature,2 Way Solenoid Valve Armature,NC Valve Armature Assembly |
||

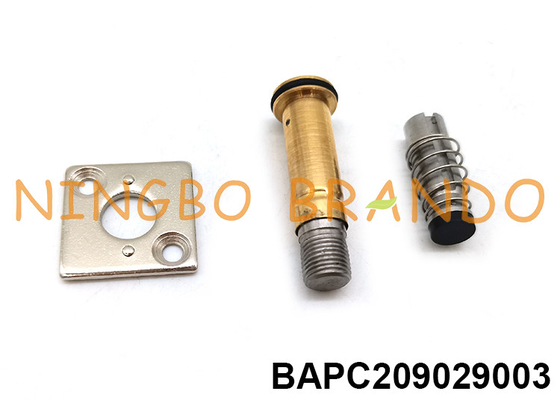

2 Way NC Normally Closed Solenoid Valve Armature With Plunger Tube And Iron Core
This 2 way normally closed solenoid armature plunger is popularly used in many solenoid valves, like 2V025-06, 2V025-08, 2P025-06, 2P025-08, etc. The armature assembly is the very important component of solenoid valve. When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core. When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.
Dimension & Data of Solenoid Valve Armature, Coil:
|
BRANDO Model
|
BAPC209029003
|
|
Function
|
2 Way Normally Closed
|
|
Plunger Tube Material
|
Brass
|
|
Seal Material
|
NBR, Viton, EPDM
|
|
Connection Type
|
Flange with O-ring Groove
|
|
BRANDO Model
|
BB09029504
|
|
Ordering Code
|
EVI 7/9
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Power
|
AC: 4-8VA
DC: 4-8W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
Flying Leads
|
|
BRANDO Model
|
BB09029516
|
|
Ordering Code
|
EVI 7/9
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Power
|
AC: 4-8.5VA
DC: 3-8.5W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Protection Class
|
IP65
|
|
Connector
|
DIN43650B
|
Product Video of Solenoid Valve Armature:
BRANDO Solenoid Valve Armature Production:
More Solenoid Valves for you to choose:
|
|
|
| Brass Solenoid Valve | Stainless Steel Solenoid Valve | Plastic Solenoid Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
