| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | LDF |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Orifice Size: | 2mm, 3mm, 4mm, 5.8mm, 8mm |
|---|---|---|---|
| Tube OD (inch): | 1/4'', 5/16'', 3/8'' | Normal Position: | NC (Normally Closed) |
| Actuation: | Direct Acting, Pilot Operated | Max Operating Pressure: | 4.5 MPa |
| Wiring Type: | Flying Leads | Voltages: | 24VAC, 110VAC, 220VAC |
| Application: | Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc | ||
| Highlight: | Solenoid Valve For Air Conditioner,Solenoid Valve For Heat Pump,Sanhua Solenoid Valve Series LDF |
||

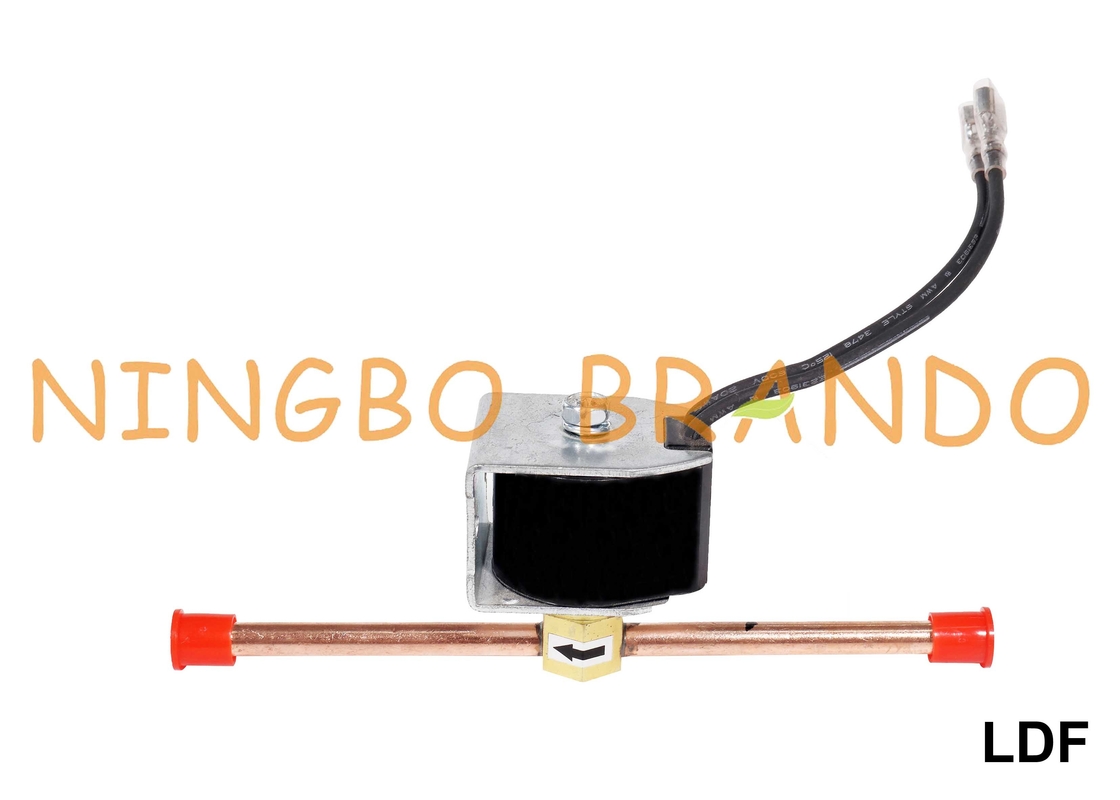

Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump
LDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.
* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow
Technical Data of LDF Series Solenoid Valve:
 |
| LDF2A |
|
| LDF8A |
| Model No | Function | Operation |
Orifice Size (mm) |
Kv Value (m³/h) |
MOP (MPa) |
Max OPD (MPa) |
Min OPD (MPa) |
Port Size (inch) |
| LDF2A01 | 2 Way Normally Closed | Direct | 2 | 0.12 | 4.5 | 3.1 | 0 | 1/4'' |
| LDF2A02 | 2 | 0.12 | 4.5 | 3.1 | 0 | 1/4'' | ||
| LDF3A08 | 3 | 0.26 | 4.5 | 3.1 | 0.005 | 1/4'' | ||
| LDF4A08 | 4 | 0.3 | 4.5 | 3.1 | 0.005 | 1/4'' | ||
| LDF6A08 | 5.8 | 0.6 | 4.5 | 3.1 | 0.005 | 5/16'' | ||
| LDF8A01 | 8 | 0.9 | 4.5 | 3.1 | 0.005 | 3/8'' | ||
| LDF8A02 | 8 | 1.1 | 4.5 | 3.1 | 0.005 | 3/8'' |
