| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | FDF2AK |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Normal Position: | Normally Open |
|---|---|---|---|
| Orifice Size: | 1.8mm | Tube OD: | 1/4'' |
| Working Pressure: | 0 To 2.1 MPa | Max Operating Pressure: | 4.5 MPa |
| Actuation: | Direct Operated | Working Medium: | HCFC, HFC Refrigerants, Etc |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Wiring Type: | Flying Leads |
| Application: | Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc | ||
| Highlight: | Refrigeration Solenoid Valve Normally Open,Sanhua Normally Open Solenoid Valve,Sanhua FDF2AK01 |
||

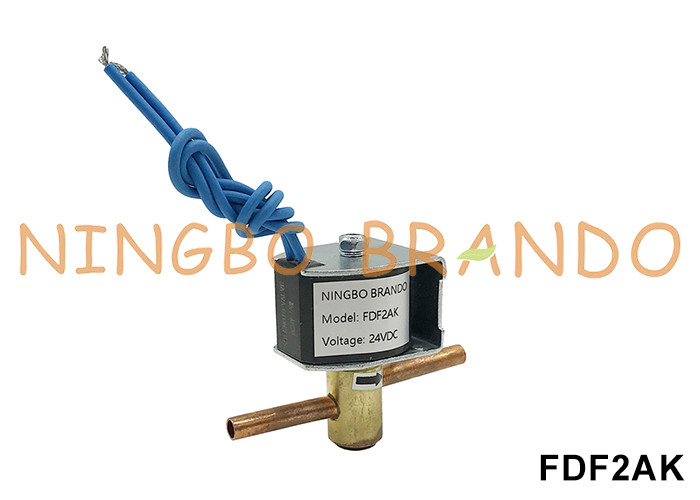

FDF2AK01 Sanhua Type Refrigeration Solenoid Valve Normally Open 24V 110V 220V
FDF2AK series solenoid valves are direct operated, normally open solenoid valves, mainly used in refrigerant control of various
devices such as refrigerating and freezing systems, air conditioners and heat pumps.
Features:
1. Compact design
2. Low energy consumption
3. Excellent operation performance
General Specifications:
1. Applicable for all common HCFC, HFC refrigerants such as:
R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A1)
2. Medium temperature TS min./max.: -30°C / 120°C
3. Ambient temperature: -30°C / +50°C
4. Relative humidity: 0 to 95% RH
5. Installation position:
1) Liquid, suction and discharge line
2) Coil upwards, coil axis ±15° tolerance versus vertical axis
3) Flow direction corresponds to the arrow
Technical Data:
|
Model No
|
Function
|
Operation
|
Orifice
|
Kv (m³/h)
|
MOP
|
Max.
OPD
|
Min.
OPD
|
Connection
OD
|
|
FDF2AK01
|
2 Way
NO
|
Direct Acting
|
1.8mm
|
0.05
|
45 bar
|
21 bar
|
0 bar
|
1/4''
(Φ6.35mm)
|
