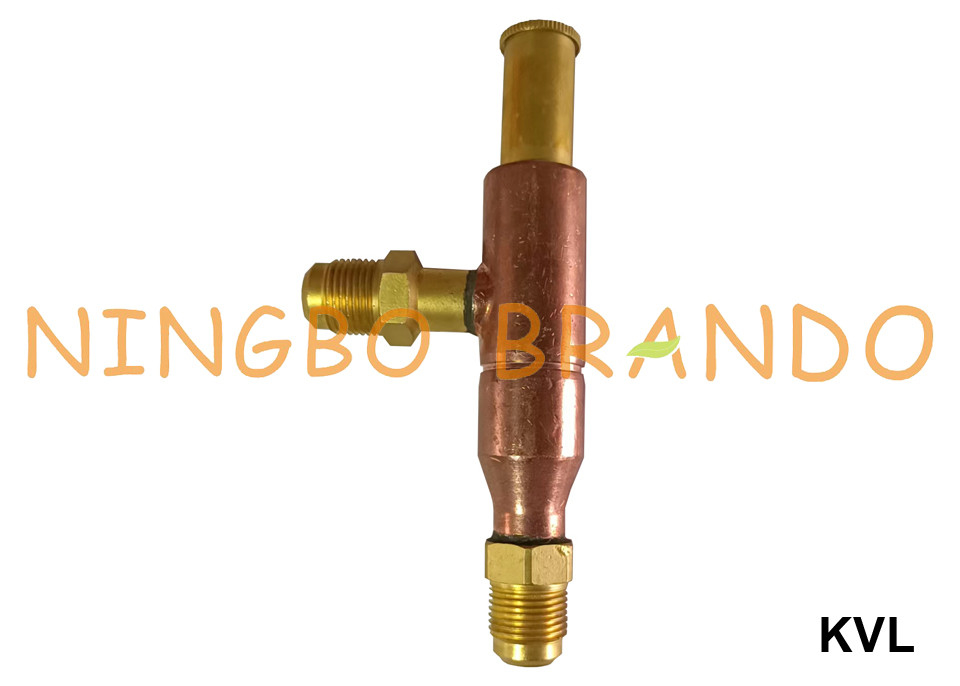

Name: KVL 12 KVL 15 Danfoss Type CPR Crankcase Pressure Regulator Regulating Valve
Brand: BRANDO
SKU: KVL 12, KVL 15
Rating: 4.6 (189 reviews)

Home Products Refrigeration Solenoid Valve

KVL 12 KVL 15 Danfoss Type CPR Crankcase Pressure Regulator Regulating Valve

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	KVL 12, KVL 15

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Crankcase Pressure Regulator	Refrigerant:	CFC, HCFC, HFC
Port Size:	1/2'', 5/8''	Connection:	Flare
Regulation Range:	0 To 6 Bar, Factory Setting = 2 Bar	Max Working Pressure:	14 Bar
Max P-band:	KVL 12-22: 2.0 Bar, KVL 28-35: 1.5 Bar	Medium Temperature Range:	-200 To +150℃
High Light:	Danfoss KVL Valve , Danfoss CPR Valve , Refrigeration Crankcase Pressure Regulating Valve

KVL 12 KVL 15 Danfoss Type CPR Crankcase Pressure Regulator Regulating Valve

A crankcase pressure regulator (CPR) is a common accessory added to many low-temperature refrigeration applications, such as walk-in and reach-in freezers. They are designed to prevent the compressor's motor from overloading when its crankcase pressure rises above its designed working pressure. On many low-temperature applications, this can occur during or after a defrost cycle, or after a normal shutdown period. The CPR is an outlet pressure regulator and will not allow the crankcase pressure to rise above a predetermined level.

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''
